5023520300
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

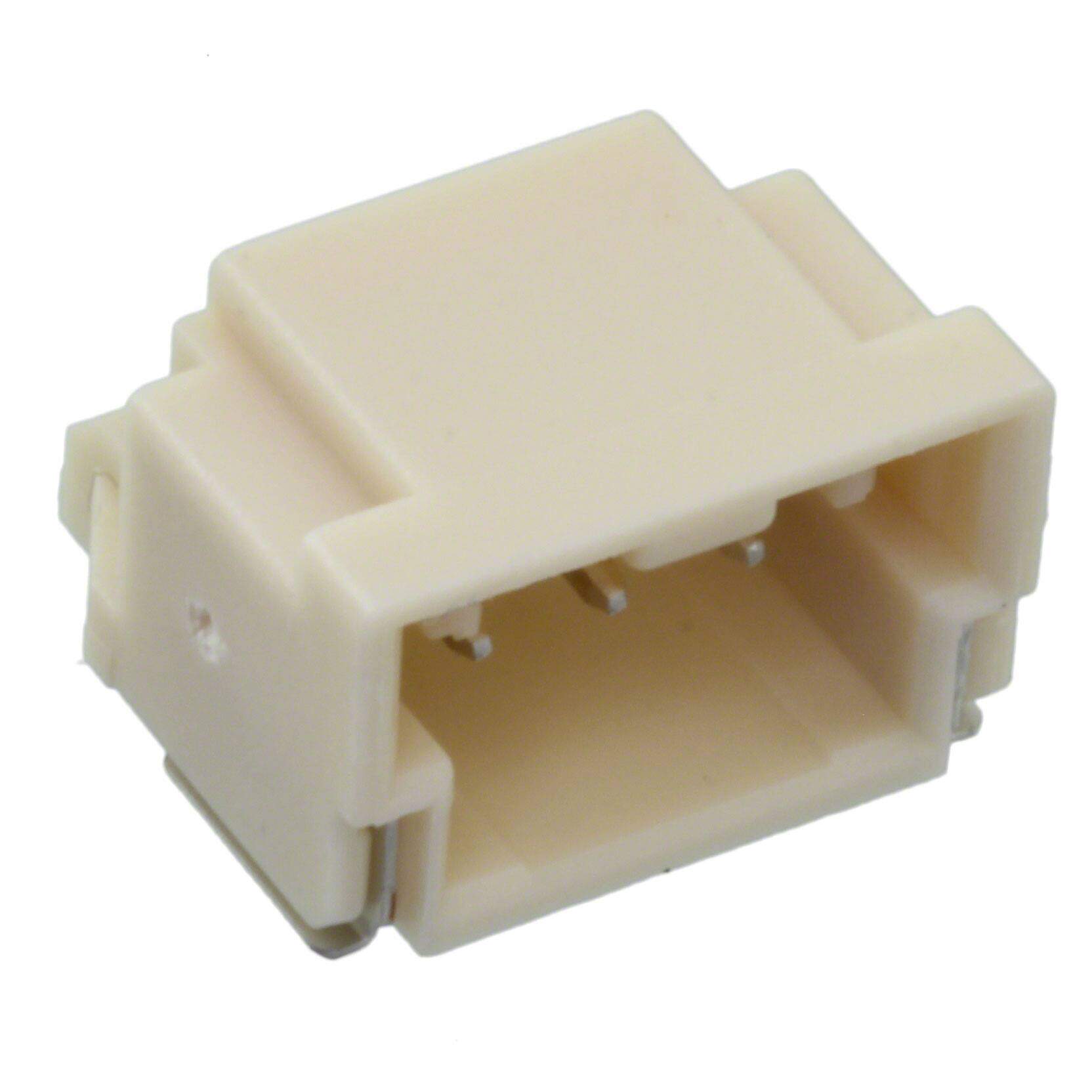

DuraClik? Wire-to-Board Header, Single Row, Right Angle, 3 Circuits, Tin (Sn), Natural
PDF
/
Buying Options
Total Price: USD $0.65
Unit Price: USD $0.6512
≥1 USD $0.6512
≥10 USD $0.54032
≥100 USD $0.45012
Inventory: 63412
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Housing Material PBT
Technical
Packaging Tape & Reel (TR)
Published 2015
Series DuraClik 502352
JESD-609 Code e3
Feature Solder Retention
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Applications Automotive, Industrial
Number of Rows 1
Voltage - Rated 125V
Fastening Type Latch Lock
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Right Angle
Terminal Pitch 2mm
Depth 9.4mm
Insulation Height 0.252 6.40mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.079 2.00mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 1
Number of Contacts 3
Contact Length - Mating 0.136 3.45mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.252 inch
Contact Gender Male
UL Flammability Code 94V-0
Housing Color Natural
Insulation Resistance 1GOhm
Mating Contact Pitch 0.079 inch
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 500VAC V
Insulation Insulated
Glow Wire Compliant Non-compliant
Dimensions
Length 10mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
