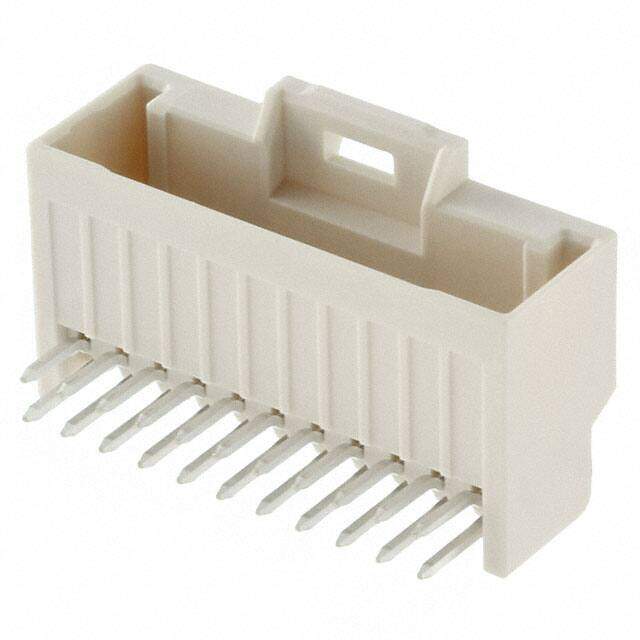

5018762240
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 22POS 2MM
PDF
/
Buying Options
Total Price: USD $1.21
Unit Price: USD $1.2056
≥1 USD $1.2056
≥10 USD $1.0296
≥100 USD $0.850335
≥500 USD $0.787926
Inventory: 7391
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 21 Weeks
Physical
Contact Material Brass
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Option 1 LOCKING
Technical
Packaging Tray
Published 2005
Series iGrid 501876
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 22
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Rows 2
Fastening Type Latch Holder
Contact Finish - Mating Tin
Contact Type Male Pin
Insulation Height 0.327 8.30mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Natural
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.944 inch
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.126 3.20mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Operating Temperature (Max) 85°C
Contact Gender FEMALE
Body Depth 0.57 inch
Rated Current (Signal) 1A
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.079 inch
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 1000VAC V
Durability 30 Cycles
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
