5016451220
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

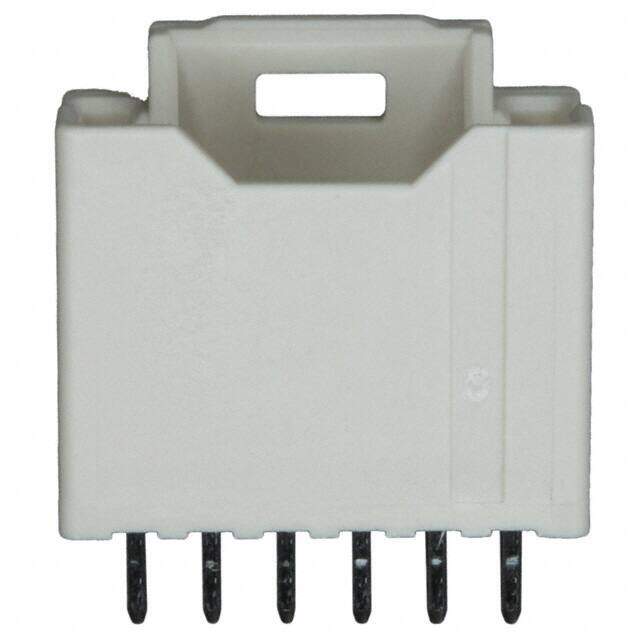

CONN HEADER VERT 12POS 2MM
PDF
/
Buying Options
Total Price: USD $0.96
Unit Price: USD $0.9592
≥1 USD $0.9592
≥10 USD $0.79288
≥100 USD $0.660774
≥500 USD $0.52859
≥1000 USD $0.46251
≥3000 USD $0.439384
Inventory: 4679
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Durability 30 Cycles
Dielectric Withstanding Voltage 1400VAC V
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.079 inch
Insulation Resistance 1000000000Ohm
Rated Current (Signal) 2A
Body Depth 0.453 inch
UL Flammability Code 94V-0
Operating Temperature (Max) 85°C
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.126 3.20mm
Row Spacing - Mating 0.079 (2.00mm)
Body Length or Diameter 0.551 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Natural
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.472 12.00mm
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Latch Holder
Number of Rows 2
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Positions 12
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
JESD-609 Code e3
Series iGrid 501645
Published 2005
Packaging Tray
Physical
Board Mounting Option PEG
Mounting Option 1 LOCKING
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 5 Weeks
