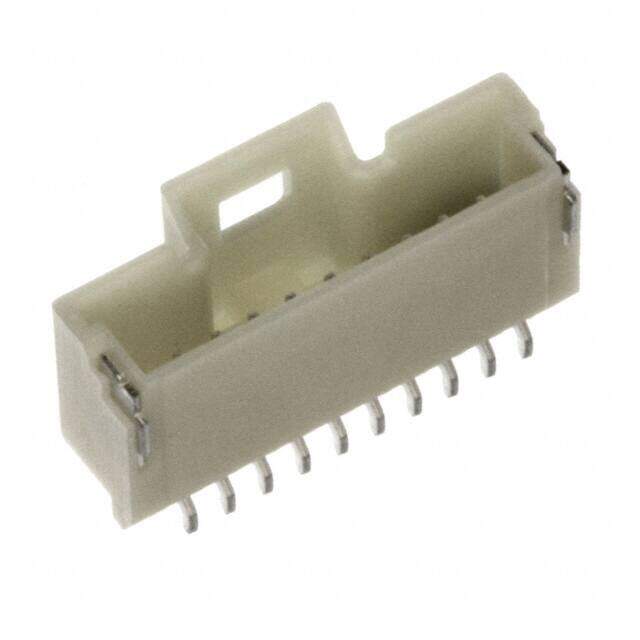

5015681007
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD R/A 10POS 1MM
PDF
/
Buying Options
Total Price: USD $0.77
Unit Price: USD $0.7744
≥1 USD $0.7744
≥10 USD $0.64152
≥100 USD $0.534864
Inventory: 18903
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 40.0μin 1.02μm
Plating Thickness 39μin
Technical
Durability 30 Cycles
Dielectric Withstanding Voltage 350VAC V
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.039 inch
Contact Resistance 20mOhm
Rated Current (Signal) 1A
Body Depth 0.223 inch
UL Flammability Code 94V-0
Operating Temperature (Min) -40°C
Contact Gender FEMALE
Operating Temperature (Max) 85°C
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Shrouding Shrouded - 4 Wall
Body Length or Diameter 0.472 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Natural
Pitch - Mating 0.039 1.00mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.185 4.70mm
Total Number of Contacts 10
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Latch Holder
HTS Code 8536.69.40.40
Number of Rows 1
Applications General Purpose
Number of Positions 10
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Solder Retention
JESD-609 Code e3
Series Pico-Clasp 501568
Published 2007
Packaging Tape & Reel (TR)
Physical
Mounting Option 1 LOCKING
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Surface Mount, Right Angle
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 8 Weeks
