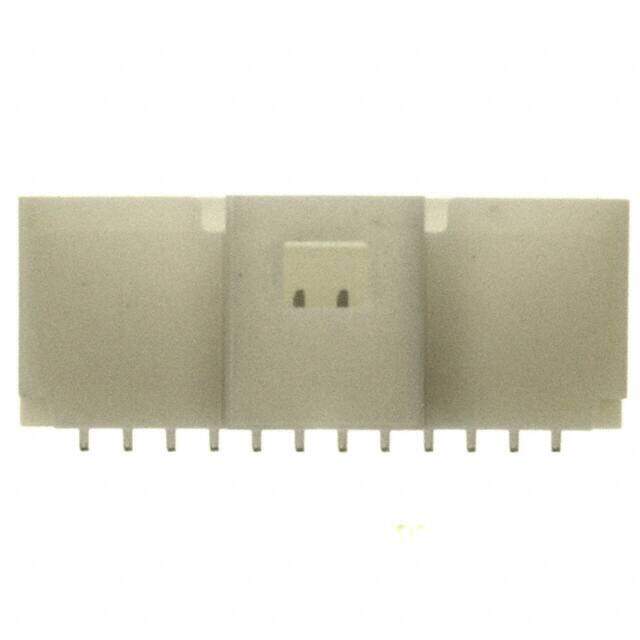

501568-1207
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 1MM 12POS SMD R/A
PDF
/
Buying Options
Total Price: USD $1.14
Unit Price: USD $1.137953
≥1 USD $1.137953
≥10 USD $1.073544
≥100 USD $1.012785
≥500 USD $0.955449
≥1000 USD $0.901375
Inventory: 1160
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Housing Material Thermoplastic
Technical
Packaging Cut Tape (CT)
Published 2007
Series Pico-Clasp 501568
Feature Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 12
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Natural
Applications General Purpose
Number of Rows 1
Voltage - Rated 50V
Fastening Type Latch Holder
Voltage - Rated DC 50V
Contact Finish - Mating Tin
Contact Type Male Pin
Pitch 1mm
Orientation Right Angle
Depth 5.35mm
Insulation Height 0.185 4.70mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.039 1.00mm
Insulation Color Natural
Voltage - Rated AC 50V
Shrouding Shrouded - 4 Wall
Lead Pitch 1mm
Number of Contacts 12
Contact Finish - Post Tin
Contact Gender Male
Housing Color Natural
Number of Circuits 12
Max Voltage Rating (AC) 50V
Max Voltage Rating (DC) 5.05kV
Glow Wire Compliant Non-compliant
Dimensions
Length 14mm
Contact Finish Thickness - Mating 40.0μin 1.02μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
