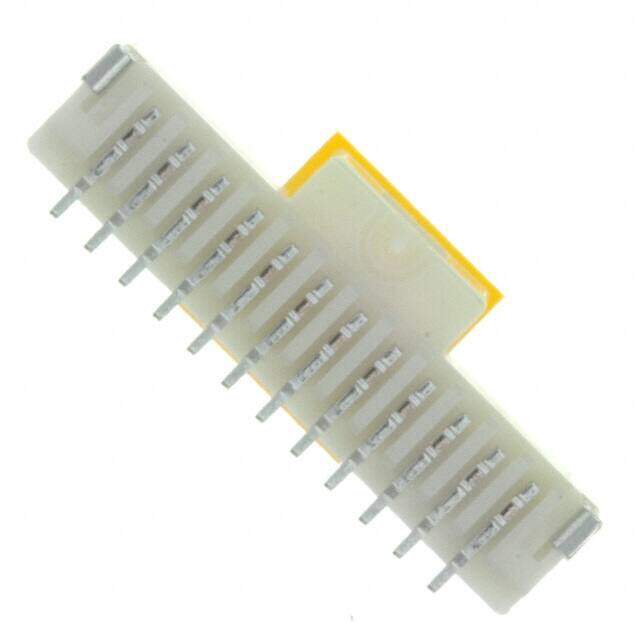

5013311207
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD 12POS 1MM
PDF
/
Buying Options
Total Price: USD $0.66
Unit Price: USD $0.66
≥1 USD $0.66
≥10 USD $0.54736
≥100 USD $0.456192
Inventory: 49170
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 40.0μin 1.02μm
Technical
Dielectric Withstanding Voltage 350VAC V
Mating Contact Pitch 0.039 inch
Contact Resistance 20mOhm
UL Flammability Code 94V-0
Operating Temperature (Min) -40°C
Contact Gender FEMALE
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Shrouding Shrouded - 4 Wall
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Natural
Pitch - Mating 0.039 1.00mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.213 5.40mm
Total Number of Contacts 12
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Latch Holder
Number of Rows 1
Applications General Purpose
Number of Positions 12
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Pick and Place, Solder Retention
JESD-609 Code e3
Series Pico-Clasp 501331
Published 2007
Packaging Tape & Reel (TR)
Physical
Mounting Option 1 LOCKING
Insulation Material Polyamide (PA46), Nylon 4/6
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 17 Weeks
