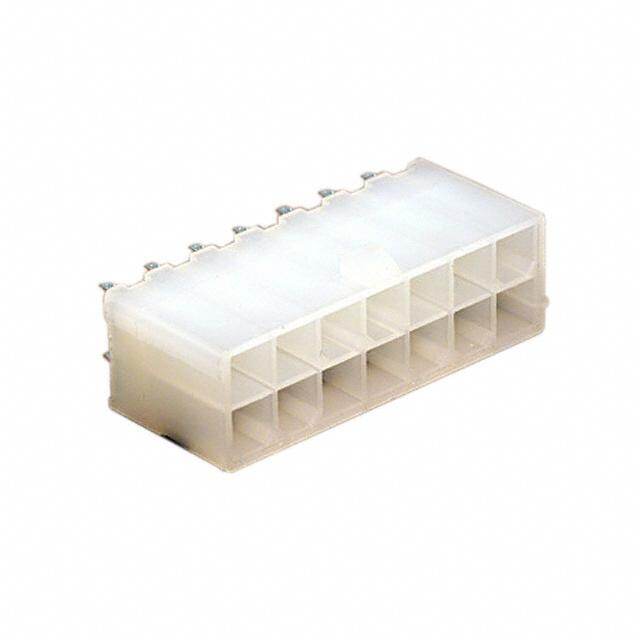

44472-1454
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
RoHS Compliant COMMERCIAL UL CSA 2008 Connector RECTANGULAR POWER CONNECTOR 30Cycles 6.672N 10mOhm 105C
PDF
/
Buying Options
Total Price: USD $3.04
Unit Price: USD $3.039676
≥1 USD $3.039676
≥10 USD $2.867622
≥100 USD $2.705299
≥500 USD $2.552174
≥1000 USD $2.407714
Inventory: 8926
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material COPPER ALLOY
Mounting Type BOARD
Insulation Material NYLON
Shell Material POLYAMIDE66
Mounting Option 1 POLARIZED LCK
Mounting Style STRAIGHT
Technical
Published 2008
JESD-609 Code e3
Pbfree Code icon-pbfree yes
ECCN Code EAR99
Connector Type RECTANGULAR POWER CONNECTOR
Number of Rows 2
Additional Feature MINI-FIT HCS
HTS Code 8536.69.40.30
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating TIN (100) OVER NICKEL
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 14
Terminal Pitch 4.191mm
Reach Compliance Code compliant
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Operating Temperature (Max) 105°C
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender MALE
Operating Temperature (Min) -40°C
UL Flammability Code 94V-2
Empty Shell NO
Body Depth 0.5 inch
Rated Current (Signal) 12A
Contact Style SQ PIN-SKT
Contact Resistance 10mOhm
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.165 inch
Body/Shell Style RECEPTACLE
Termination Type SOLDER
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 1500VDC V
PCB Contact Row Spacing 5.5118 mm
Durability 30 Cycles
Contact Finish Termination Tin (Sn) - with Nickel (Ni) barrier
Contact Pattern RECTANGULAR
Insertion Force-Max 6.672 N
Withdrawl Force-Min 3.1136 N
Mating Contact Row Spacing 0.165 inch
Dimensions
Length - Termination 0.14 inch
Compliance
RoHS Status RoHS Compliant
