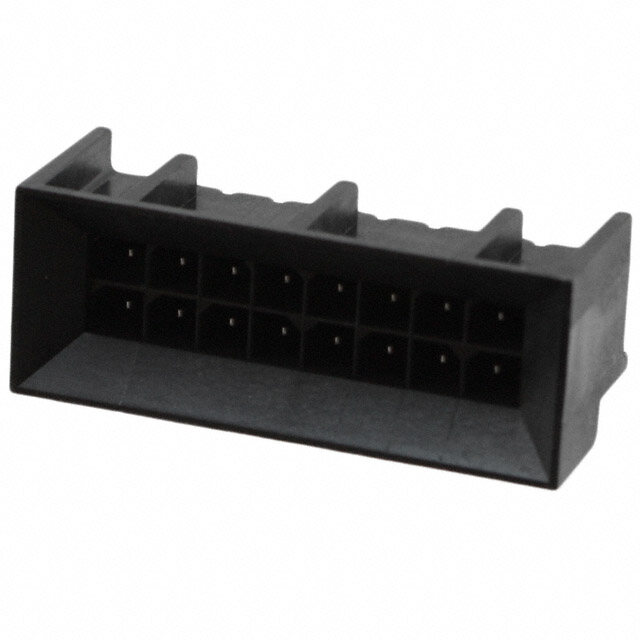

44432-1601
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Wire to Board HDR 16 POS 3mm Solder ST Thru-Hole Micro-Fit 3.0 BMI? Frame
PDF
/
Buying Options
Total Price: USD $4.3
Unit Price: USD $4.298291
≥1 USD $4.298291
≥10 USD $4.054986
≥100 USD $3.82546
≥500 USD $3.608928
≥1000 USD $3.404649
Inventory: 1476
Minimum: 1
-
+
Technical Details
Physical
Contact Material Brass
Contact Plating Tin
Mount Through Hole
Housing Material Thermoplastic
Technical
Pbfree Code yes
Termination Solder
ECCN Code EAR99
Connector Type Header, Male Pin
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Black
Number of Rows 2
Gender Male
Additional Feature POLARIZED
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
Voltage - Rated DC 250V
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 3mm
Orientation Vertical
Current Rating 5A
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 2.9972 mm
Number Of PCB Rows 2
Lead Pitch 3mm
Number of Contacts 16
PCB Contact Pattern RECTANGULAR
Body Breadth 0.469 inch
UL Flammability Code 94V-0
Body Depth 0.457 inch
Rated Current (Signal) 5A
Contact Style SQ PIN-SKT
Contact Resistance 100mOhm
Insulation Resistance 1GOhm
Body/Shell Style RECEPTACLE
Max Voltage Rating (AC) 250V
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 1500VAC V
Durability 30 Cycles
Max Voltage Rating (DC) 250.25kV
Contact Pattern RECTANGULAR
Insertion Force-Max 11.5648 N
Withdrawl Force-Min 3.614 N
Glow Wire Compliant Non-compliant
Dimensions
Length - Termination 0.13 inch
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
Alternative Model
