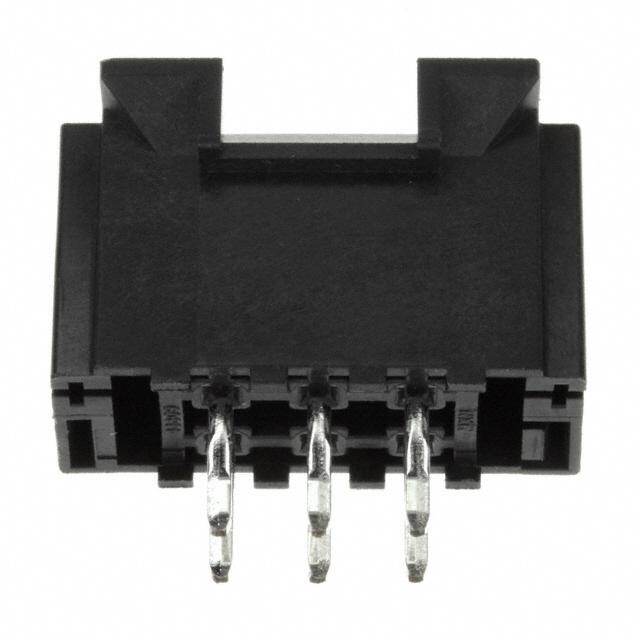

43879-0023
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 6POS 4.2MM DUAL TIN
PDF
/
Buying Options
Total Price: USD $1.88
Unit Price: USD $1.88108
≥1 USD $1.88108
≥10 USD $1.774605
≥100 USD $1.674158
≥500 USD $1.579394
≥1000 USD $1.489995
Inventory: 968
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
Plating Thickness 100μin
Technical
Glow Wire Compliant Non-compliant
Contact Pattern RECTANGULAR
Durability 30 Cycles
Dielectric Withstanding Voltage 1500VAC V
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 600V
Body/Shell Style RECEPTACLE
Insulation Resistance 1GOhm
Contact Resistance 10mOhm
Contact Style SQ PIN-SKT
Rated Current (Signal) 8A
Body Depth 0.587 inch
Empty Shell NO
UL Flammability Code 94V-0
Body Breadth 0.591 inch
PCB Contact Pattern RECTANGULAR
Lead Pitch 4.2mm
Number Of PCB Rows 2
Row Spacing - Mating 4.191 mm
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Current Rating 7A
Orientation Vertical
Total Number of Contacts 6
Pitch 4.2mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Voltage - Rated DC 600V
Subcategory Headers and Edge Type Connectors
Additional Feature MINI-FIT CPI
Gender Male
Number of Rows 2
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 6
Connector Type Male Pin
ECCN Code EAR99
Termination Press-Fit
Part Status Active
Pbfree Code yes
Published 2011
Physical
Housing Material Thermoplastic
Shell Material GLASS FILLED POLYAMIDE
Mount Through Hole
Contact Plating Tin
Contact Material Bronze
Supply Chain
Factory Lead Time 8 Weeks
