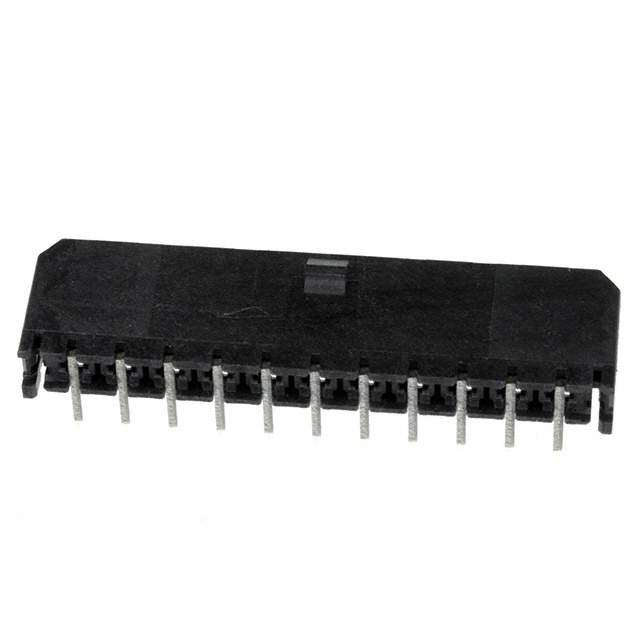

43650-1100
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 3MM MICRO-FIT RA 11 CKT Tin
PDF
/
Buying Options
Total Price: USD $2.62
Unit Price: USD $2.6228
≥1 USD $2.6228
≥10 USD $2.474339
≥100 USD $2.334288
≥500 USD $2.202152
≥1000 USD $2.077504
Inventory: 3047
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length - Termination 0.125 inch
Plating Thickness 100u inch
Technical
Insulator Color BLACK
Insertion Force-Max 11.5648 N
Contact Pattern RECTANGULAR
Contact Finish Termination TIN (100) OVER NICKEL
Polarization Key POLARIZED HOUSING
Termination Type SOLDER
Body/Shell Style RECEPTACLE
Mating Contact Pitch 0.118 inch
Body Depth 0.39 inch
Empty Shell NO
UL Flammability Code 94V-0
Contact Gender MALE
Body Breadth 0.172 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Reach Compliance Code compliant
Terminal Pitch 2.9972mm
Total Number of Contacts 11
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating TIN (100) OVER NICKEL
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.30
Additional Feature TRAY PACKAGING
Number of Rows 1
Connector Type RECTANGULAR POWER CONNECTOR
ECCN Code EAR99
Part Status Active
Pbfree Code icon-pbfree yes
JESD-609 Code e3
Published 2011
Physical
Board Mounting Option PEG
Mounting Style RIGHT ANGLE
Mounting Option 1 LOCKING
Shell Material GLASS FILLED LIQUID CRYSTAL POLYMER
Insulation Material GLASS FILLED LIQUID CRYSTAL POLYMER
Mounting Type BOARD
Contact Material BRASS
Supply Chain
Factory Lead Time 10 Weeks
