39-29-9026
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

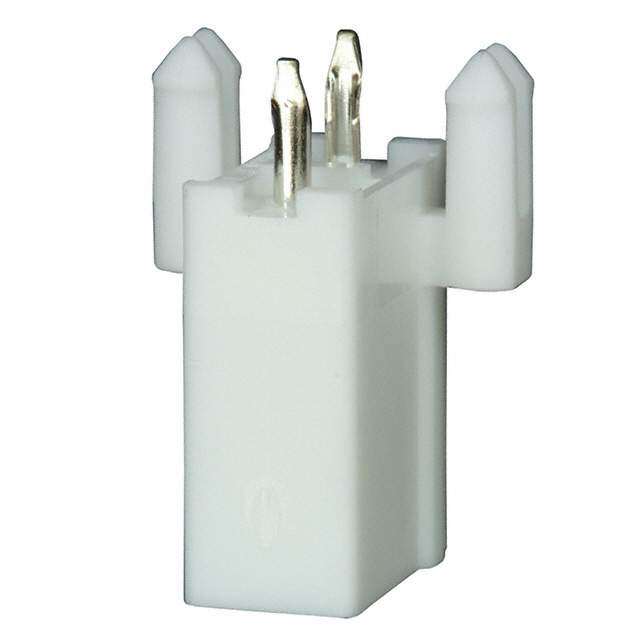

MINI-FIT JR. Male Pin Rectangular Connector
PDF
/
Inventory: 1320
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length - Termination 0.14 inch
Technical
Mating Contact Row Spacing 0.165 inch
Withdrawl Force-Min 3.1136 N
Insertion Force-Max 6.672 N
Contact Pattern RECTANGULAR
Contact Finish Termination Tin/Copper (Sn/Cu)
Durability 30 Cycles
PCB Contact Row Spacing 5.5118 mm
Dielectric Withstanding Voltage 1500VAC V
Polarization Key HOUSING SIDE
Termination Type SOLDER
Body/Shell Style PLUG
Insulation Resistance 1000000000Ohm
Contact Resistance 10mOhm
Contact Style SQ PIN-SKT
Rated Current (Signal) 9A
Body Depth 0.504 inch
Empty Shell NO
UL Flammability Code 94V-0
Operating Temperature (Min) -40°C
Contact Gender MALE
Body Breadth 0.38 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Operating Temperature (Max) 105°C
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Body Length or Diameter 0.488 inch
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Reach Compliance Code compliant
Total Number of Contacts 2
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating TIN (35) OVER COPPER
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.30
Additional Feature MINI-FIT JR.
Number of Rows 2
Connector Type RECTANGULAR POWER CONNECTOR
ECCN Code EAR99
Part Status Discontinued
Pbfree Code icon-pbfree yes
JESD-609 Code e2
Published 2009
Physical
Mounting Option 2 LOCKING
Board Mounting Option PEG
Mounting Style STRAIGHT
Mounting Option 1 POLARIZED LCK
Shell Material POLYAMIDE66
Insulation Material NYLON
Mounting Type BOARD
Contact Material BRASS
