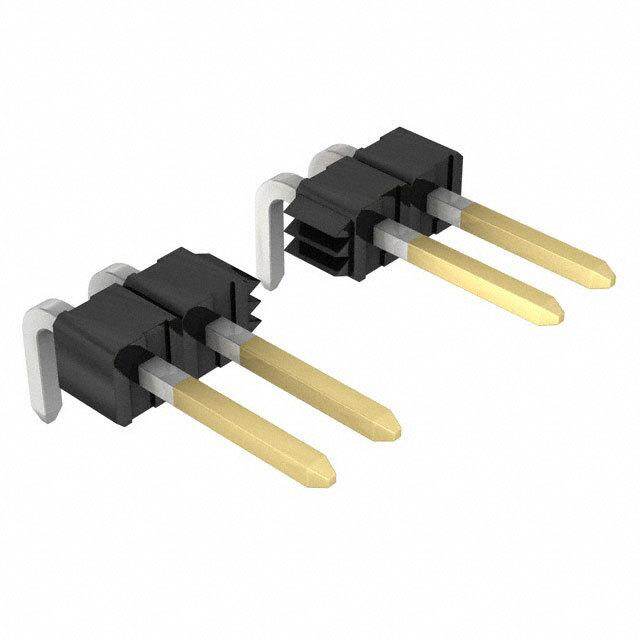

22-28-8094
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings KK 100 Hdr Assy RA B Bkwy 09 Ckt 30 SGold
PDF
/
Buying Options
Total Price: USD $0.5
Unit Price: USD $0.50232
≥1 USD $0.50232
≥10 USD $0.473895
≥100 USD $0.44707
≥500 USD $0.421763
≥1000 USD $0.397893
Inventory: 7504
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Plating Thickness 30μin
Width 2.29mm
Length 22.9mm
Height 2.49mm
Technical
Glow Wire Compliant Non-compliant
Contact Pattern RECTANGULAR
Durability 25 Cycles
Polarization Key POLAR PIN POSITION
Body/Shell Style RECEPTACLE
Insulation Resistance 50000000000Ohm
Contact Resistance 20mOhm
Contact Style SQ PIN-SKT
Mating Information MULTIPLE MATING PARTS AVAILABLE
Operating Temperature (Max) 75°C
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 6.1976mm
Number Of PCB Rows 1
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Current Rating 4A
Orientation Right Angle
Total Number of Contacts 9
Pitch 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Additional Feature MATING LENGTH=0.244 INCHES
Voltage - Rated 250V
Gender Male
Number of Rows 1
Color Black
Number of Positions 9
Connector Type Male Pin
Termination Solder
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2014
Packaging Bulk
Physical
Housing Material Thermoplastic
Mount Through Hole
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 8 Weeks
