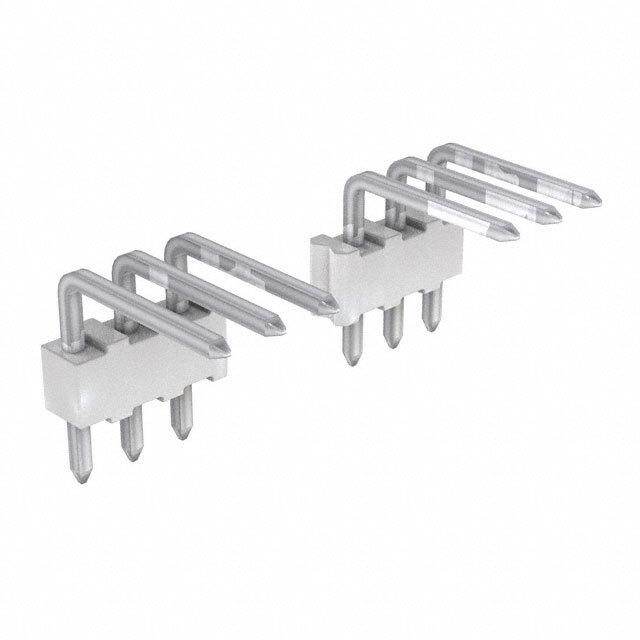

22-05-2111 image
Favorite
22-05-2111 image
Favorite

22-05-2111

Molex
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER 11POS .100 R/A TIN
PDF
/
Buying Options
Total Price: USD $0.75
Unit Price: USD $0.7467
≥1 USD $0.7467
≥10 USD $0.61275
≥100 USD $0.59375
≥500 USD $0.57475
≥1000 USD $0.55575
Inventory: 423
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Plating Thickness 60μin
Length 27.7mm
Height 6.3mm

Technical

Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Withdrawl Force-Min .556 N
Insertion Force-Max 4.8928 N
Contact Pattern RECTANGULAR
Durability 25 Cycles
Body/Shell Style RECEPTACLE
Insulation Resistance 50GOhm
Contact Resistance 10mOhm
Contact Style SQ PIN-SKT
UL Flammability Code 94V-0
Body Breadth 0.094 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 9.3726mm
Lead Pitch 2.54mm
Number Of PCB Rows 1
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Current Rating 4A
Orientation Right Angle
Total Number of Contacts 11
Pitch 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated DC 250V
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.40
Additional Feature KK
Gender Male
Number of Rows 1
Color White
Min Operating Temperature 0°C
Max Operating Temperature 75°C
Number of Positions 11
Connector Type Male Pin
ECCN Code EAR99
Termination Solder
Part Status Active
Pbfree Code yes
Published 2011

Physical

Housing Material Nylon
Mount Through Hole
Contact Plating Tin
Contact Material Brass

Supply Chain

Factory Lead Time 11 Weeks
