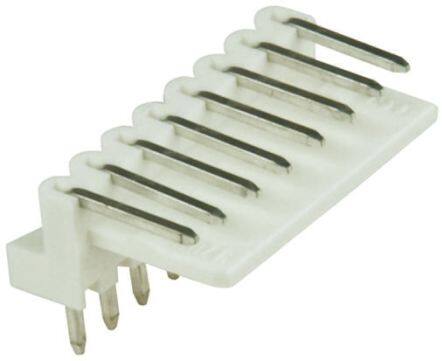

22-05-1122
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 12POS 2.5MM R/A TIN
PDF
/
Buying Options
Total Price: USD $2.06
Unit Price: USD $2.0634
≥1 USD $2.0634
≥10 USD $1.946601
≥100 USD $1.836423
≥500 USD $1.732472
≥1000 USD $1.634407
Inventory: 2582
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Technical
Voltage - Working 250V
Glow Wire Compliant Non-compliant
Hole Diameter 1.19 mm
Halogen Free Low Halogen
Contact Pattern RECTANGULAR
Max Voltage Rating (DC) 250.25kV
Number of Poles 12
Polarization Key POLARIZED HOUSING
Body/Shell Style RECEPTACLE
Contact Resistance 20mOhm
Contact Style RND PIN-SKT
UL Flammability Code 94V-0
Contact Gender Male
Body Breadth 0.236 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 7.493mm
Lead Pitch 2.5mm
Number Of PCB Rows 1
Reliability COMMERCIAL
Voltage - Rated AC 250V
Reference Standard UL
Number of Conductors ONE
Current Rating 3A
Orientation Right Angle
Total Number of Contacts 12
Pitch 2.5mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Voltage - Rated DC 250V
Subcategory Headers and Edge Type Connectors
Fastening Type Friction
HTS Code 8536.69.40.40
Number of Rows 1
Color Natural
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Connector Type Male Pin
ECCN Code EAR99
Termination Solder
Part Status Active
Pbfree Code yes
Published 2001
Physical
Housing Material Nylon
Mount Through Hole
Contact Plating Tin
Contact Material Brass
Supply Chain
Factory Lead Time 10 Weeks
