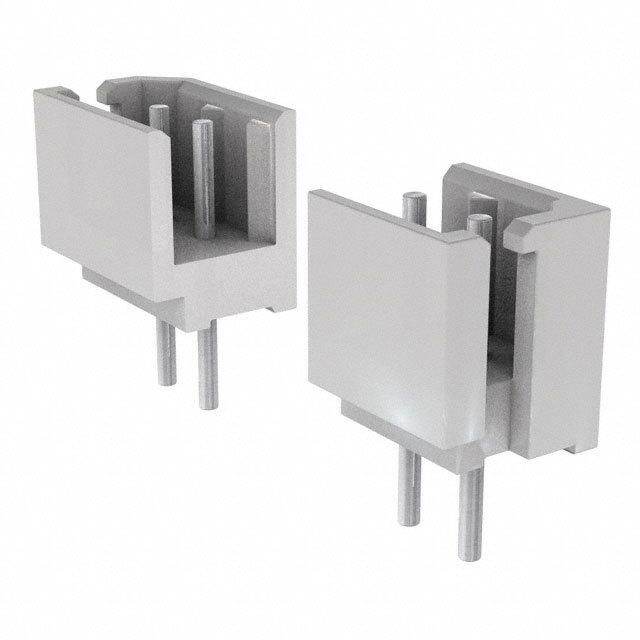

22-03-5135
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 13POS 2.5MM VERT TIN
PDF
/
Inventory: 3591
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length - Termination 0.138 inch
Plating Thickness 160u inch
Technical
Insulator Color NATURAL
Insertion Force-Max 17.792 N
Contact Pattern RECTANGULAR
Durability 30 Cycles
Dielectric Withstanding Voltage 1000VAC V
Polarization Key POLARIZED HOUSING
Termination Type SOLDER
Body/Shell Style RECEPTACLE
Mating Contact Pitch 0.098 inch
Insulation Resistance 1000000000Ohm
Contact Resistance 20mOhm
Contact Style RND PIN-SKT
Rated Current (Signal) 3A
Body Depth 0.232 inch
UL Flammability Code 94V-0
Operating Temperature (Min) -40°C
Contact Gender MALE
Body Breadth 0.193 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Operating Temperature (Max) 105°C
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Body Length or Diameter 1.374 inch
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Reach Compliance Code compliant
Terminal Pitch 2.5mm
Total Number of Contacts 13
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory Headers and Edge Type Connectors
Additional Feature SPOX, POLARIZED, SHROUDED
Number of Rows 1
Connector Type BOARD CONNECTOR
Part Status Active
Pbfree Code icon-pbfree yes
Published 2002
Physical
Mounting Style STRAIGHT
Mounting Option 1 LOCKING
Insulation Material NYLON
Mounting Type BOARD
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 11 Weeks
Alternative Model
