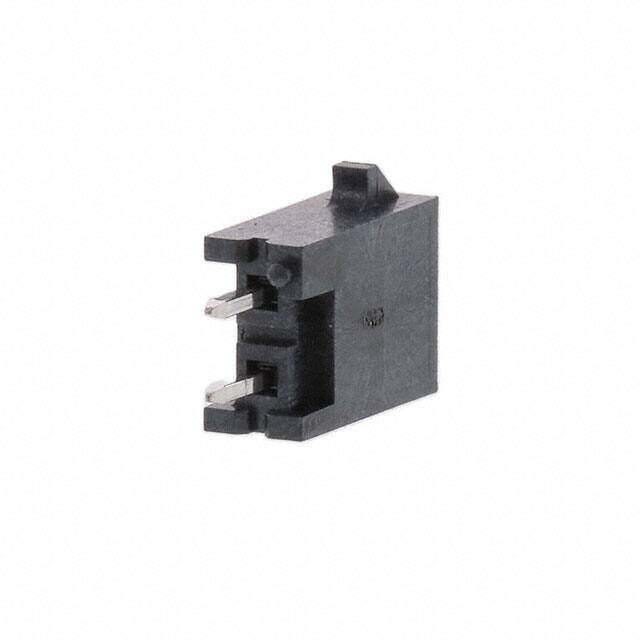

2068320201
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Power HDR 2 POS 3mm Solder ST Thru-Hole 2 Terminal 1 Port Tray
PDF
/
Buying Options
Total Price: USD $0.66
Unit Price: USD $0.656912
≥1 USD $0.656912
≥10 USD $0.619732
≥100 USD $0.584652
≥500 USD $0.551555
≥1000 USD $0.520339
Inventory: 8910
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.125 3.18mm
Row Spacing - Mating 0.118 (3.00mm)
Insulation Color Black
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.390 9.91mm
Current Rating (Amps) 12.5A per Contact
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Voltage - Rated 600VAC/DC
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Positions 2
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Glow Wire Compliant
Series Micro-Fit+ 206832
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 11 Weeks
