1723162310
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

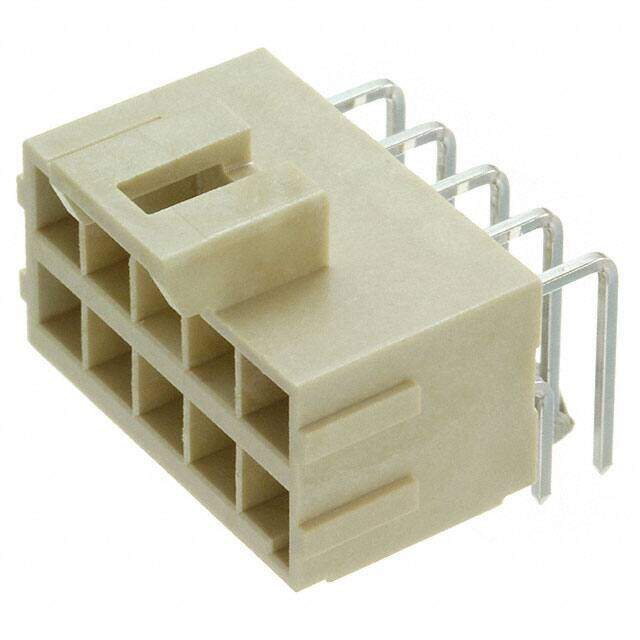

CONN HEADER R/A 10POS 3.5MM
PDF
/
Buying Options
Total Price: USD $3.79
Unit Price: USD $3.792282
≥1 USD $3.792282
≥10 USD $3.577615
≥100 USD $3.375117
≥500 USD $3.184073
≥1000 USD $3.003842
Inventory: 924
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -40°C~120°C
Packaging Bulk
Published 2015
Series Ultra-Fit 172316
Feature Board Guide
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 10
Applications Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Number of Rows 2
Voltage - Rated 400V
HTS Code 8536.69.40.30
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Type Male Pin
Insulation Height 0.534 13.56mm
Style Board to Cable/Wire
Number of Positions Loaded All
Reach Compliance Code unknown
Pitch - Mating 0.138 3.50mm
Insulation Color Natural
Row Spacing - Mating 0.181 (4.60mm)
Contact Length - Post 0.126 3.20mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 60.0μin 1.52μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
