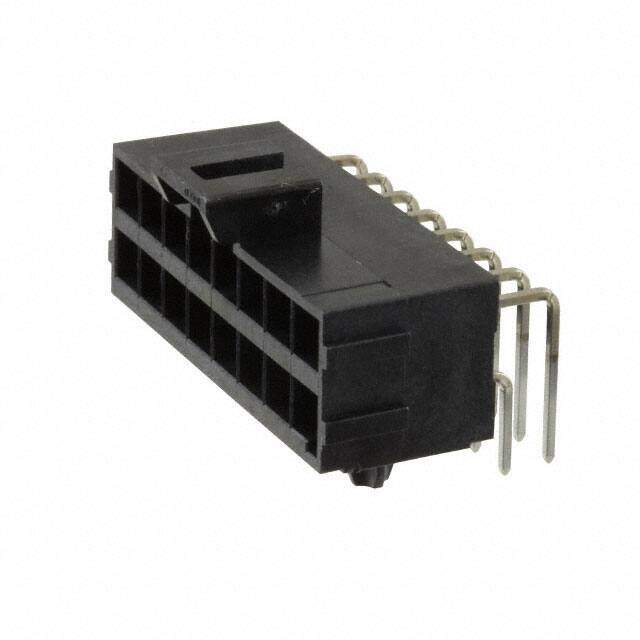

1723161216
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 16POS 3.5MM
PDF
/
Buying Options
Total Price: USD $3.85
Unit Price: USD $3.8456
≥1 USD $3.8456
Inventory: 114
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 60.0μin 1.52μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Technical
Empty Shell NO
UL Flammability Code 94V-0
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.126 3.20mm
Row Spacing - Mating 0.181 (4.60mm)
Insulation Color Black
Pitch - Mating 0.138 3.50mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.534 13.56mm
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Latch Holder
HTS Code 8536.69.40.30
Additional Feature LATCHED
Voltage - Rated 400V
Number of Rows 2
Applications Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Number of Positions 16
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide
JESD-609 Code e3
Series Ultra-Fit 172316
Published 2015
Packaging Bulk
Operating Temperature -40°C~120°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 7 Weeks
