1723161110
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

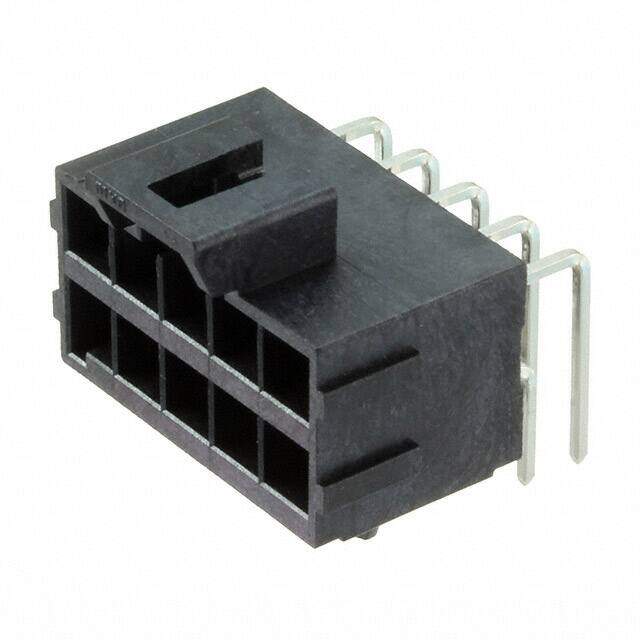

CONN HEADER R/A 10POS 3.5MM
PDF
/
Inventory: 9541
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Published 2015
Series Ultra-Fit 172316
Feature Board Guide
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 10
Applications Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Number of Rows 2
Voltage - Rated 400V
Fastening Type Latch Holder
Contact Finish - Mating Tin
Contact Type Male Pin
Insulation Height 0.534 13.56mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.138 3.50mm
Insulation Color Black
Row Spacing - Mating 0.181 (4.60mm)
Contact Length - Post 0.126 3.20mm
Shrouding Shrouded - 4 Wall
Dimensions
Contact Finish Thickness - Mating 60.0μin 1.52μm
Contact Finish Thickness - Post 60.0μin 1.52μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
