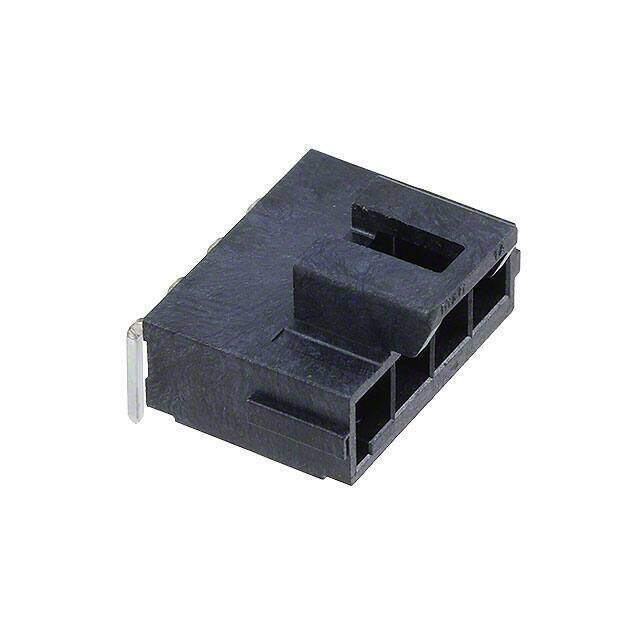

1723101204 image
Favorite
1723101204 image
Favorite

1723101204

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER R/A 4POS 3.5MM
PDF
/
Inventory: 8581
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Termination Solder
Connector Type Header
Number of Positions 4
Applications Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Number of Rows 1
Voltage - Rated 400V
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Type Male Pin
Insulation Height 0.353 8.96mm
Style Board to Cable/Wire
Number of Positions Loaded All
Reach Compliance Code unknown
Pitch - Mating 0.138 3.50mm
Insulation Color Black
Contact Length - Post 0.126 3.20mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
Series Ultra-Fit 172310
Published 2015
Packaging Tray
Operating Temperature -40°C~120°C

Dimensions

Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 60.0μin 1.52μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant

Physical

Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 7 Weeks
