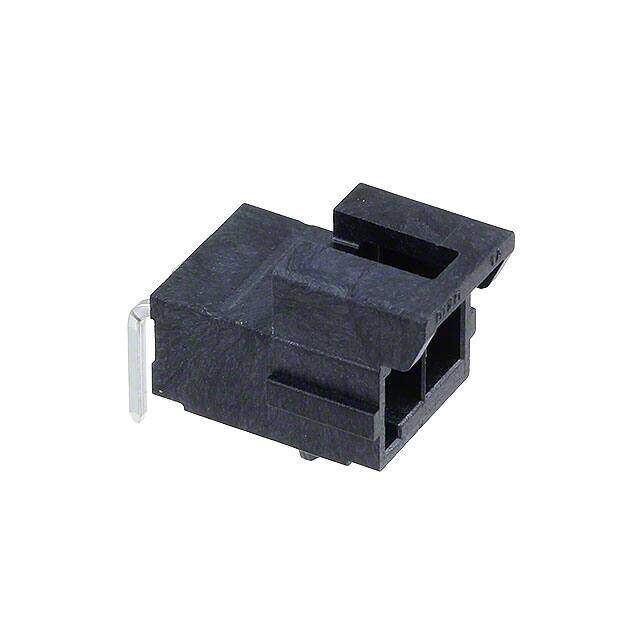

1723101102

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER R/A 2POS 3.5MM
PDF
/
Buying Options
Total Price: USD $0.72
Unit Price: USD $0.7216
≥1 USD $0.7216
≥10 USD $0.59752
≥100 USD $0.497754
≥500 USD $0.373296
≥1000 USD $0.34841
Inventory: 1577
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 60.0μin 1.52μm
Contact Finish Thickness - Mating 60.0μin 1.52μm

Technical

Shrouding Shrouded - 4 Wall
Contact Length - Post 0.126 3.20mm
Insulation Color Black
Pitch - Mating 0.138 3.50mm
Reach Compliance Code unknown
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.353 8.96mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Latch Holder
Voltage - Rated 400V
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Number of Positions 2
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
Series Ultra-Fit 172310
Published 2015
Packaging Tray
Operating Temperature -40°C~105°C

Physical

Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 13 Weeks
