1722872302

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins

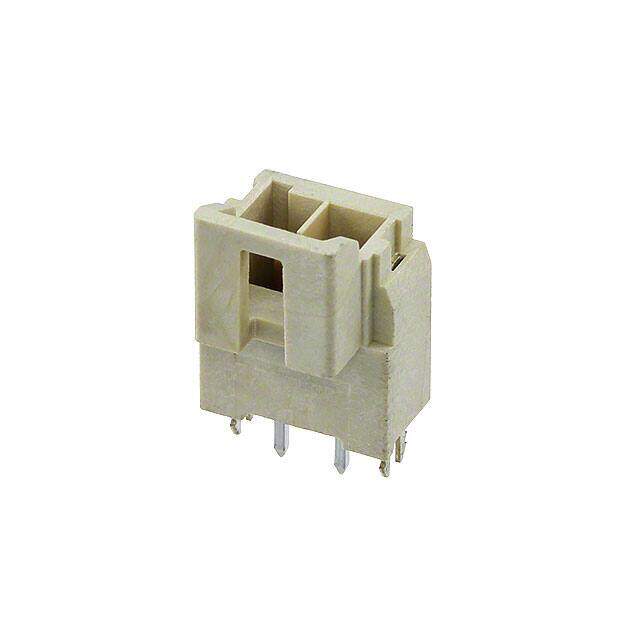

Description CONN HEADER VERT 2POS 3.5MM
PDF
/
Buying Options
Total Price: USD $2.1
Unit Price: USD $2.1032
≥1 USD $2.1032
≥10 USD $1.78992
≥100 USD $1.478664
≥500 USD $1.128433
≥1000 USD $1.035047
Inventory: 800
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Stack Height (Mating) 26.99mm
Contact Finish Thickness - Post 60.0μin 1.52μm
Contact Finish Thickness - Mating 30.0μin 0.76μm

Technical

Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.126 3.20mm
Insulation Color Natural
Pitch - Mating 0.138 3.50mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.465 11.80mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Latch Holder
Voltage - Rated 400V
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Number of Positions 2
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide, Solder Retention
Series Ultra-Fit 172287
Published 2014
Packaging Bulk
Operating Temperature -40°C~120°C

Physical

Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 16 Weeks
