1722871303

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins

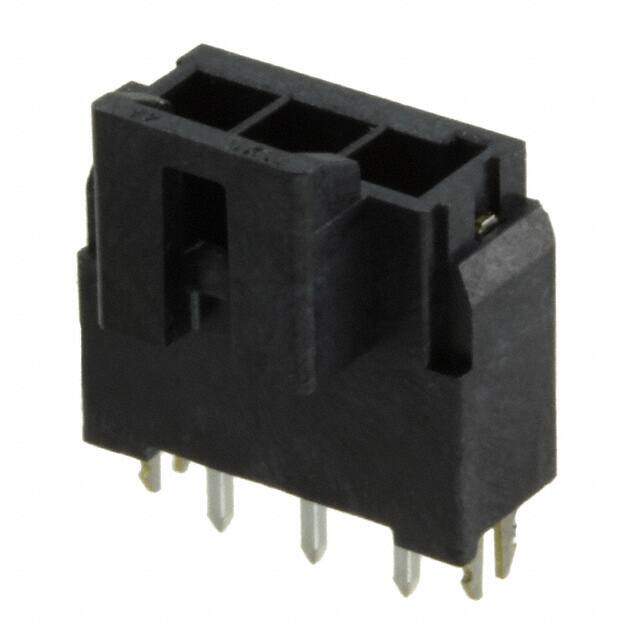

Description Ultra-Fit Vertical Header 3.5mm Pitch Single Row 3 Circuits with Solder Clips 0.76μm Gold Plating Glow Wire Capable...
PDF
/
Buying Options
Total Price: USD $1.26
Unit Price: USD $1.2584
≥1 USD $1.2584
≥10 USD $1.07184
≥100 USD $0.885632
≥500 USD $0.8206
Inventory: 1330
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Stack Height (Mating) 26.99mm
Contact Finish Thickness - Post 60.0μin 1.52μm
Contact Finish Thickness - Mating 30.0μin 0.76μm

Technical

Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.126 3.20mm
Insulation Color Black
Pitch - Mating 0.138 3.50mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.465 11.80mm
Pitch 3.5052mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Latch Holder
Voltage - Rated 400V
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Color Black
Number of Positions 3
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Solder Retention
Series Ultra-Fit 172287
Published 2014
Packaging Bulk
Operating Temperature -40°C~120°C

Physical

Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 16 Weeks
