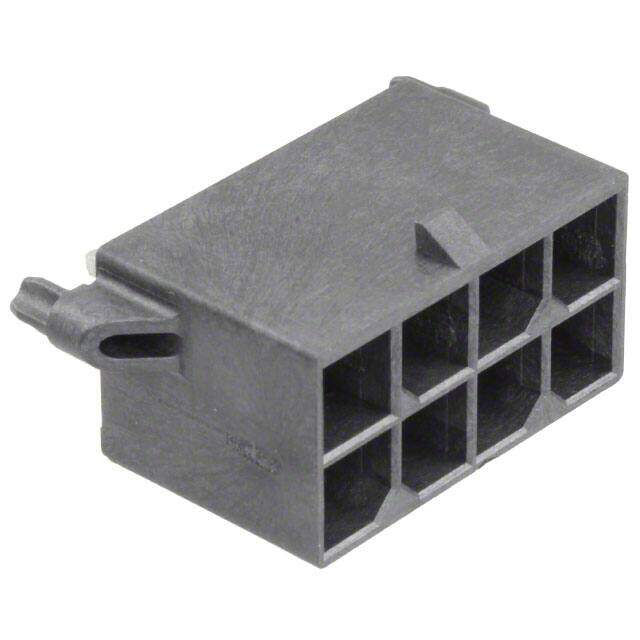

1720651008
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 8POS 5.7MM
PDF
/
Buying Options
Total Price: USD $7.23
Unit Price: USD $7.2336
≥1 USD $7.2336
≥10 USD $6.40992
≥100 USD $5.78732
Inventory: 686
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length - Termination 0.147 inch
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Technical
Insulation Resistance 1000000000Ohm
Contact Resistance 5mOhm
Operating Temperature (Min) -40°C
Operating Temperature (Max) 105°C
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.147 3.73mm
Row Spacing - Mating 0.224 (5.70mm)
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.224 5.70mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.583 14.80mm
Mixed Contacts YES
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Locking Ramp
Number of Rows 2
Applications Automotive, General Purpose, Industrial, Telecommunications
Number of Positions 8
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide, Glow Wire Compliant
Series Mega-Fit
Published 2013
Packaging Tray
Physical
Board Mounting Option SPLIT BOARD LOCK
Mounting Option 1 LATCH
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Contact Material Copper
Supply Chain
Factory Lead Time 9 Weeks
