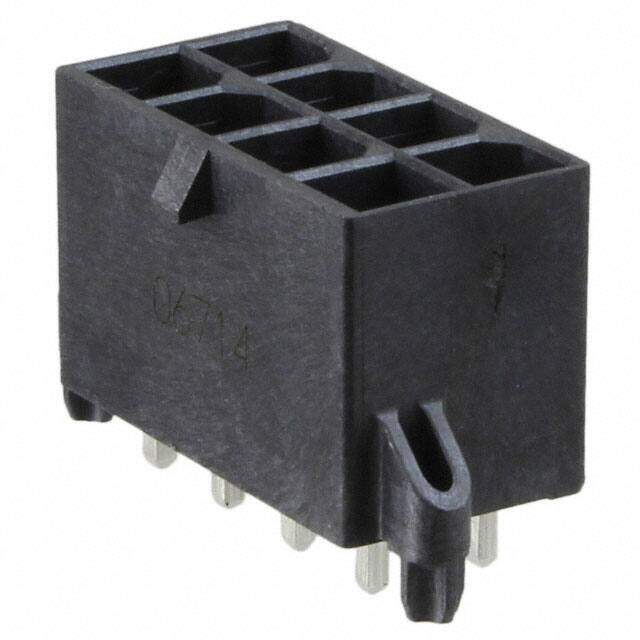

1720650008
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 8POS 5.7MM
PDF
/
Buying Options
Total Price: USD $6.42
Unit Price: USD $6.4152
≥1 USD $6.4152
≥10 USD $5.61088
≥100 USD $4.542234
≥500 USD $3.740669
Inventory: 1028
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Copper
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Mounting Option 1 LATCH
Board Mounting Option SPLIT BOARD LOCK
Technical
Packaging Tray
Published 2013
Series Mega-Fit
Feature Board Guide, Glow Wire Compliant
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 8
Applications Automotive, General Purpose, Industrial, Telecommunications
Number of Rows 2
Fastening Type Locking Ramp
Contact Finish - Mating Gold
Contact Type Male Pin
Mixed Contacts YES
Insulation Height 0.583 14.80mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.224 5.70mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Row Spacing - Mating 0.224 (5.70mm)
Contact Length - Post 0.147 3.73mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Operating Temperature (Max) 105°C
Operating Temperature (Min) -40°C
Contact Resistance 5mOhm
Insulation Resistance 1000000000Ohm
Dimensions
Plating Thickness 15μin
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Length - Termination 0.147 inch
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
