Description

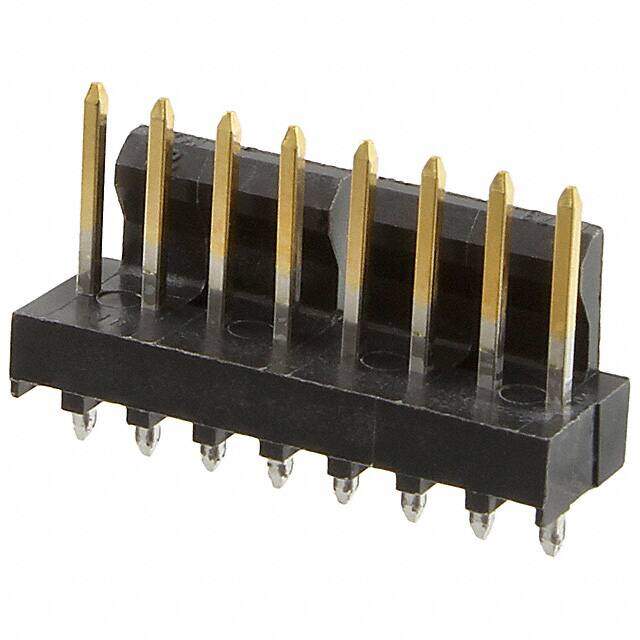

CONN HEADER VERT 8POS 2.54MM
PDF
/
Inventory: 963
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-2
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Technical
Insertion Force-Max 2.502 N
Polarization Key POLARIZED HOUSING
Overall Contact Length 0.510 12.95mm
Rated Current (Signal) 4A
Body Depth 0.322 inch
Operating Temperature (Min) -40°C
Body Breadth 0.25 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.293 7.45mm
Contact Finish - Post Tin
Number Of PCB Rows 1
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.092 2.34mm
Body Length or Diameter 0.794 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.322 8.18mm
Terminal Pitch 2.54mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Friction Lock
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Positions 8
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series KK 171856
Published 2013
Packaging Bulk
Physical
Mounting Option 1 LOCKING
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 14 Weeks
Alternative Model
