RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

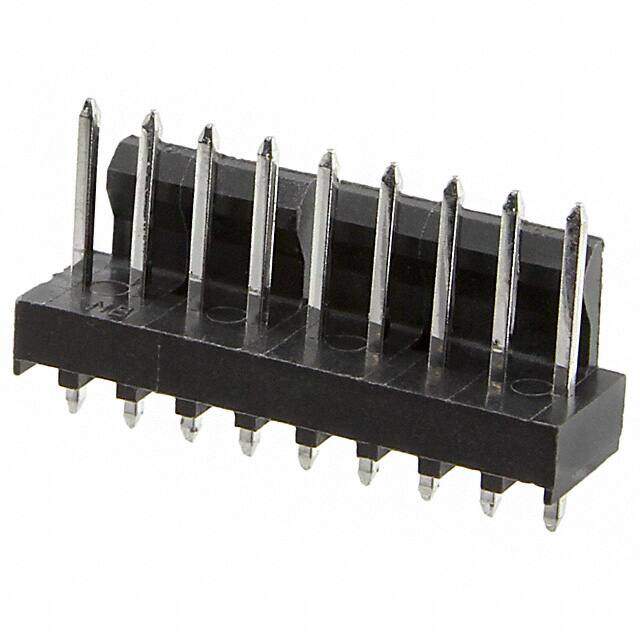

Headers & Wire Housings KK Hdr Vrt 9 Ckt 2.54mm Pitch Sn
PDF
/
Buying Options
Total Price: USD $0.84
Unit Price: USD $0.8448
≥1 USD $0.8448
≥10 USD $0.69696
≥100 USD $0.580888
≥500 USD $0.464737
≥1000 USD $0.406648
≥3000 USD $0.386311
Inventory: 5116
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-2
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-2
Dimensions
Contact Finish Thickness - Post 60.0μin 1.52μm
Contact Finish Thickness - Mating 60.0μin 1.52μm
Plating Thickness 60μin
Technical
Glow Wire Compliant Compliant
Mating Post Length 7.44mm
Halogen Free Low Halogen
Insertion Force-Max 2.502 N
Polarization Key POLARIZED HOUSING
Overall Contact Length 0.510 12.95mm
Rated Current (Signal) 4A
Body Depth 0.322 inch
Lead Length 2.34mm
Contact Gender Male
Body Breadth 0.25 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.293 7.45mm
Number Of PCB Rows 1
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.092 2.34mm
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 4A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.322 8.18mm
Terminal Pitch 2.54mm
Orientation Vertical
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Friction Lock
Voltage - Rated 250V
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 9
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series KK 171856
Published 2013
Packaging Bulk
Physical
Weight 1.030987g
Housing Material Nylon
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 14 Weeks
Alternative Model
