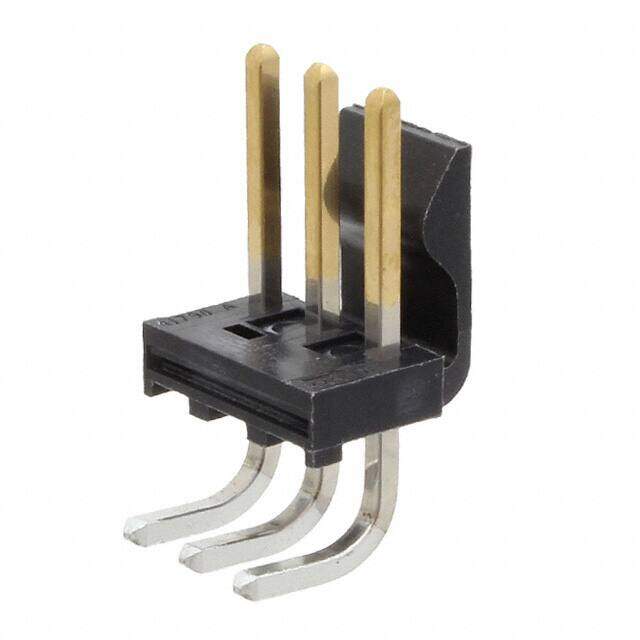

1718141003
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 3POS 3.96MM
PDF
/
Buying Options
Total Price: USD $0.8
Unit Price: USD $0.8008
≥1 USD $0.8008
≥10 USD $0.66616
≥100 USD $0.555016
≥500 USD $0.488541
Inventory: 4115
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Brass
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Mounting Option 1 LOCKING
Technical
Packaging Bulk
Published 2013
Series KK 171814
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 3
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Rows 1
Fastening Type Friction Lock
Contact Finish - Mating Gold
Contact Type Male Pin
Insulation Height 0.394 10.00mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.156 3.96mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Body Length or Diameter 0.462 inch
Contact Length - Post 0.100 2.54mm
Shrouding Shrouded - 1 Wall
Number Of PCB Rows 1
Contact Finish - Post Tin
Contact Length - Mating 0.446 11.33mm
PCB Contact Pattern RECTANGULAR
Operating Temperature (Max) 80°C
Operating Temperature (Min) -40°C
Body Depth 0.659 inch
Rated Current (Signal) 5A
Durability 25 Cycles
Dimensions
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-2
RoHS Status ROHS3 Compliant
