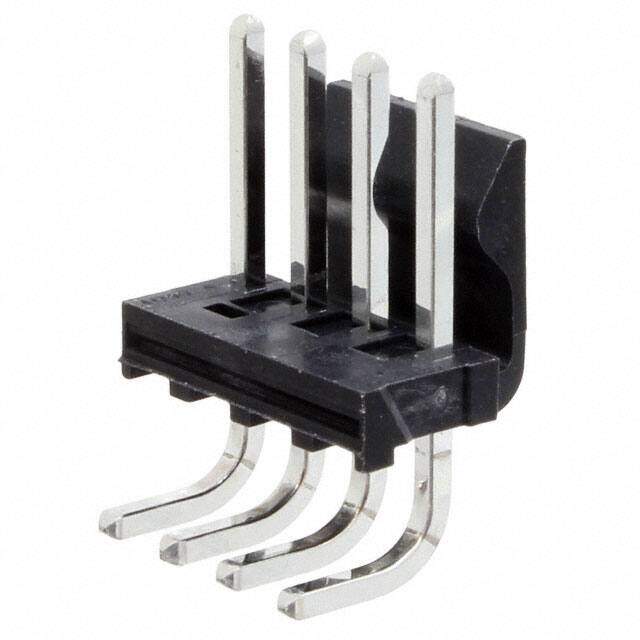

1718140004
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 4POS 3.96MM
PDF
/
Buying Options
Total Price: USD $0.66
Unit Price: USD $0.66
≥1 USD $0.66
≥10 USD $0.55704
≥100 USD $0.433039
≥500 USD $0.340234
≥1000 USD $0.298989
≥3000 USD $0.27837
Inventory: 1689
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-2
Dimensions
Contact Finish Thickness - Post 60.0μin 1.52μm
Contact Finish Thickness - Mating 60.0μin 1.52μm
Plating Thickness 60μin
Technical
Durability 25 Cycles
Rated Current (Signal) 5A
Body Depth 0.659 inch
Operating Temperature (Max) 80°C
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.446 11.33mm
Number Of PCB Rows 1
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.100 2.54mm
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.156 3.96mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.394 10.00mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Friction Lock
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Positions 4
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series KK 171814
Published 2013
Packaging Bulk
Physical
Mounting Option 1 LOCKING
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Brass
Supply Chain
Factory Lead Time 12 Weeks
