RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

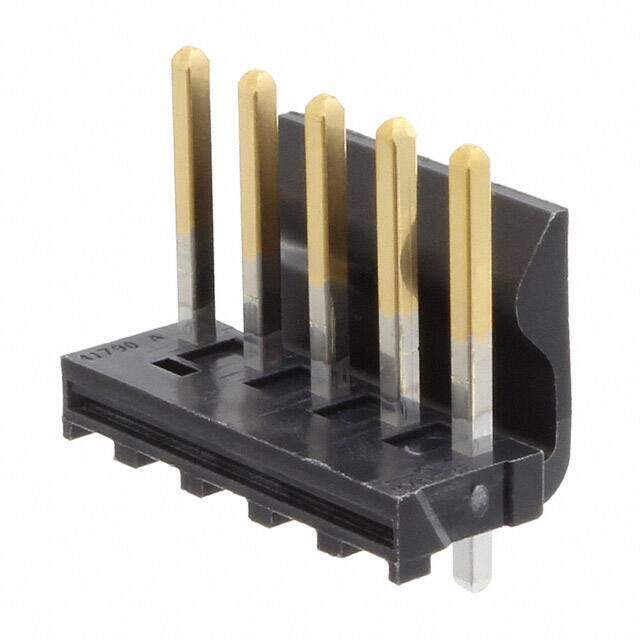

CONN HEADER VERT 5POS 3.96MM
PDF
/
Buying Options
Total Price: USD $0.85
Unit Price: USD $0.8536
≥1 USD $0.8536
≥10 USD $0.71016
≥100 USD $0.591448
≥500 USD $0.520634
Inventory: 9087
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-2
Dimensions
Length - Termination 0.092 inch
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Technical
Insertion Force-Max 3.892 N
Overall Contact Length 0.671 17.05mm
Rated Current (Signal) 7A
Body Depth 0.446 inch
Operating Temperature (Min) -40°C
Body Breadth 0.394 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.448 11.38mm
Contact Finish - Post Tin
Number Of PCB Rows 1
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.093 2.35mm
Body Length or Diameter 0.774 inch
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.156 3.96mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.446 11.33mm
Terminal Pitch 3.9624mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Friction Lock
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Positions 5
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series KK 171813
Published 2013
Packaging Bulk
Physical
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 11 Weeks
Alternative Model
