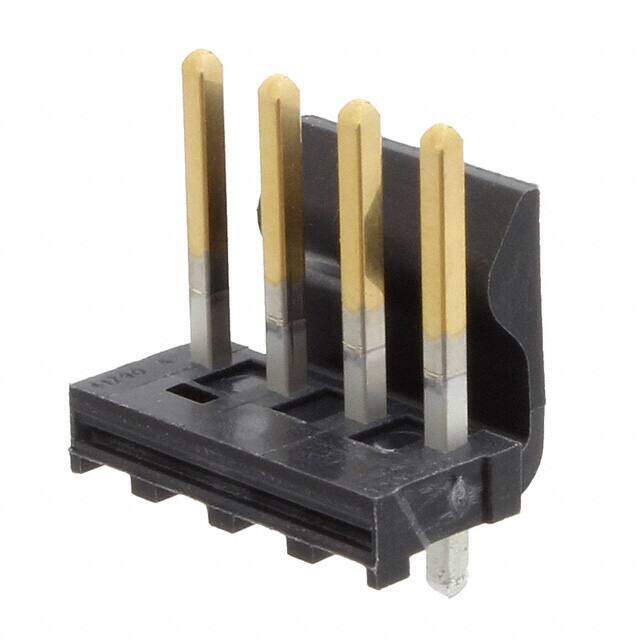

1718131004
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 4POS 3.96MM
PDF
/
Buying Options
Total Price: USD $1.43
Unit Price: USD $1.4256
≥1 USD $1.4256
≥10 USD $1.21616
≥100 USD $1.00496
≥500 USD $0.766938
≥1000 USD $0.703472
≥3000 USD $0.687606
Inventory: 3390
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Brass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2013
Series KK 171813
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 4
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Rows 1
Fastening Type Friction Lock
Contact Finish - Mating Gold
Contact Type Male Pin
Insulation Height 0.446 11.33mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.156 3.96mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Contact Length - Post 0.093 2.35mm
Shrouding Shrouded - 1 Wall
Number Of PCB Rows 1
Contact Finish - Post Tin
Contact Length - Mating 0.448 11.38mm
PCB Contact Pattern RECTANGULAR
Rated Current (Signal) 7A
Overall Contact Length 0.671 17.05mm
Durability 25 Cycles
Insertion Force-Max 3.892 N
Dimensions
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Length - Termination 0.092 inch
Compliance
Material Flammability Rating UL94 V-2
RoHS Status ROHS3 Compliant
