RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

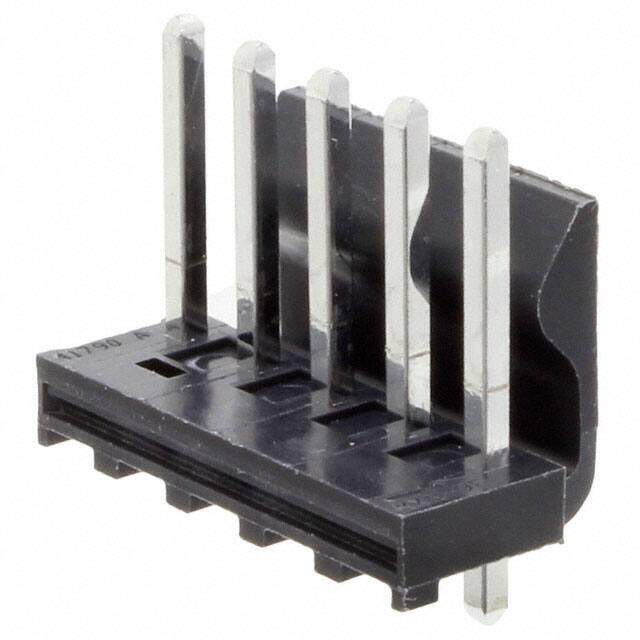

Headers & Wire Housings KK Hdr Vrt 5 Ckt 3.96mm Pitch Sn
PDF
/
Buying Options
Total Price: USD $0.52
Unit Price: USD $0.516611
≥1 USD $0.516611
≥10 USD $0.487371
≥100 USD $0.459778
≥500 USD $0.433761
≥1000 USD $0.409202
Inventory: 2829
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Housing Material Nylon
Technical
Packaging Bulk
Published 2013
Series KK 171813
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 5
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Rows 1
Voltage - Rated 250V
Fastening Type Friction Lock
Contact Finish - Mating Tin
Contact Type Male Pin
Orientation Vertical
Terminal Pitch 3.9624mm
Insulation Height 0.446 11.33mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 7A
Pitch - Mating 0.156 3.96mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Body Length or Diameter 0.774 inch
Contact Length - Post 0.093 2.35mm
Shrouding Shrouded - 1 Wall
Number Of PCB Rows 1
Contact Length - Mating 0.448 11.38mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.394 inch
Contact Gender Male
Lead Length 2.37mm
Body Depth 0.446 inch
Rated Current (Signal) 7A
Overall Contact Length 0.671 17.05mm
Insertion Force-Max 3.892 N
Halogen Free Low Halogen
Mating Post Length 11.38mm
Glow Wire Compliant Compliant
Dimensions
Contact Finish Thickness - Mating 60.0μin 1.52μm
Contact Finish Thickness - Post 60.0μin 1.52μm
Length - Termination 0.092 inch
Compliance
Material Flammability Rating UL94 V-2
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-2
