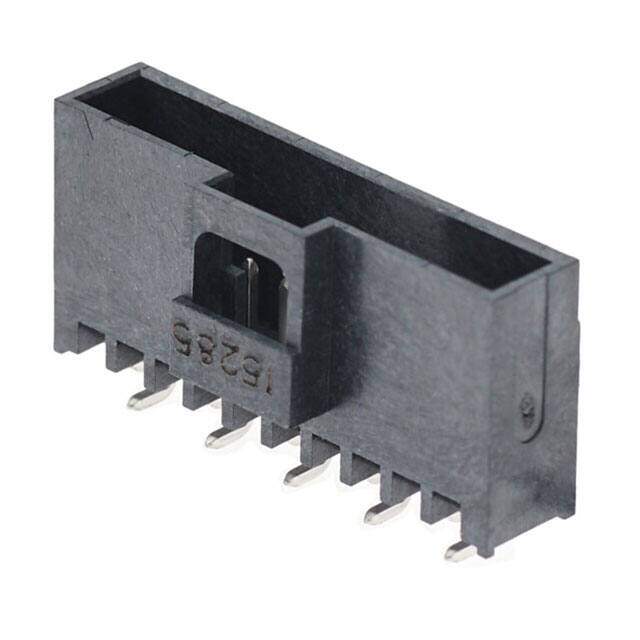

1510621060
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD 10POS 2MM
PDF
/
Buying Options
Total Price: USD $1.64
Unit Price: USD $1.641725
≥1 USD $1.641725
≥10 USD $1.548792
≥100 USD $1.461131
≥500 USD $1.378424
≥1000 USD $1.3004
Inventory: 8132
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 78.7μin 2.00μm
Contact Finish Thickness - Mating 98.4μin 2.50μm
Technical
Contact Length - Mating 0.141 3.60mm
Shrouding Shrouded - 4 Wall
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.413 10.49mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Latch Holder
HTS Code 8536.69.40.40
Gender Male
Number of Rows 1
Applications Automotive, General Purpose, Telecommunications
Number of Positions 10
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide
Series Milli-Grid 151062
Published 2016
Packaging Tube
Physical
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 16 Weeks
