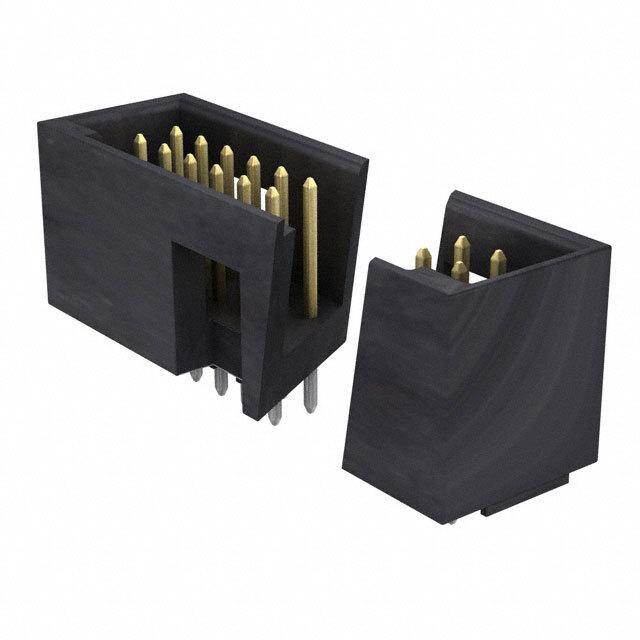

15-29-6010
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
HEADER, 10WAY
PDF
/
Inventory: 2464
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material PHOSPHOR BRONZE
Mounting Type BOARD
Insulation Material GLASS FILLED POLYESTER
Mounting Style STRAIGHT
Technical
Published 2007
JESD-609 Code e3
ECCN Code EAR99
Connector Type BOARD CONNECTOR
Number of Rows 2
Additional Feature LATCHED, POLARIZED
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating GOLD (15) OVER NICKEL
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 10
Terminal Pitch 2.54mm
Reach Compliance Code compliant
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.612 inch
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Operating Temperature (Max) 105°C
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.405 inch
Contact Gender MALE
Operating Temperature (Min) -40°C
UL Flammability Code 94V-0
Body Depth 0.475 inch
Rated Current (Signal) 3A
Contact Style SQ PIN-SKT
Contact Resistance 15mOhm
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.1 inch
Body/Shell Style RECEPTACLE
Termination Type SOLDER
Polarization Key CENTER
Dielectric Withstanding Voltage 600VAC V
PCB Contact Row Spacing 2.54 mm
Durability 50 Cycles
Contact Finish Termination TIN (75) OVER NICKEL
Contact Pattern RECTANGULAR
Mating Contact Row Spacing 0.1 inch
Dimensions
Plating Thickness 15u inch
Length - Termination 0.13 inch
Compliance
RoHS Status RoHS Compliant
