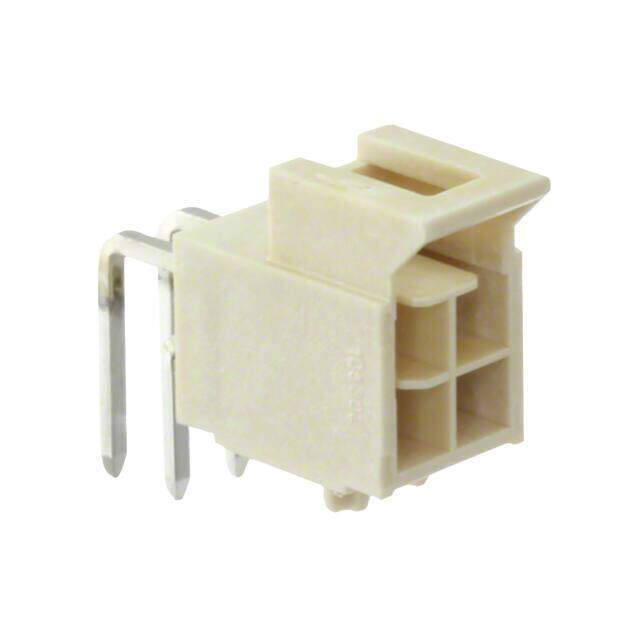

1053142104
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 4POS 2.5MM
PDF
/
Buying Options
Total Price: USD $1.28
Unit Price: USD $1.281557
≥1 USD $1.281557
≥10 USD $1.209018
≥100 USD $1.140578
≥500 USD $1.076023
≥1000 USD $1.015114
Inventory: 9145
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Brass
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Published 2016
Series Nano-Fit 105314
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 4
Applications Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
Number of Rows 2
Voltage - Rated 250V
Additional Feature POLARIZED
Fastening Type Latch Holder
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Insulation Height 0.247 6.28mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.098 2.50mm
Insulation Color Natural
Row Spacing - Mating 0.098 (2.50mm)
Contact Length - Post 0.138 3.50mm
Shrouding Shrouded - 4 Wall
Empty Shell NO
Dimensions
Contact Finish Thickness - Mating 59.0μin 1.50μm
Contact Finish Thickness - Post 59.0μin 1.50μm
Compliance
RoHS Status ROHS3 Compliant
