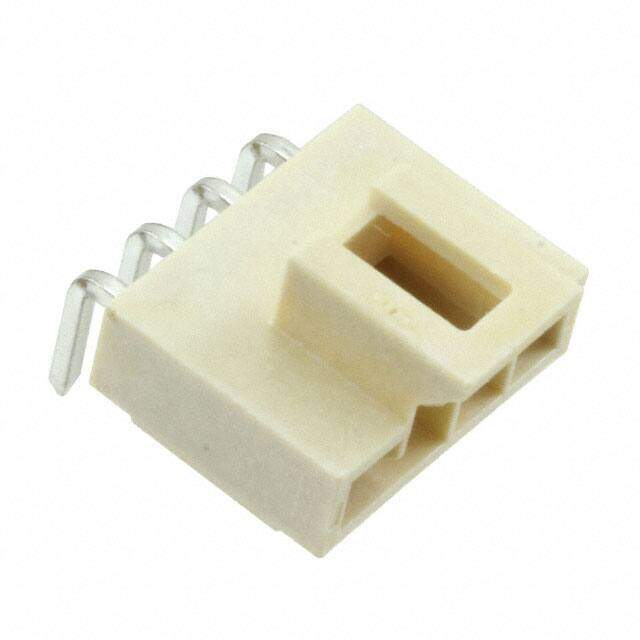

1053132204
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 4POS 2.5MM
PDF
/
Buying Options
Total Price: USD $1.39
Unit Price: USD $1.3904
≥1 USD $1.3904
≥10 USD $1.18272
≥100 USD $0.976747
≥500 USD $0.7711
≥1000 USD $0.683707
≥3000 USD $0.668281
Inventory: 1714
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Published 2016
Series Nano-Fit 105313
JESD-609 Code e3
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 4
Applications Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
Number of Rows 1
Voltage - Rated 250V
Additional Feature POLARIZED
Fastening Type Latch Holder
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Insulation Height 0.149 3.78mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.098 2.50mm
Insulation Color Natural
Contact Length - Post 0.126 3.20mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Empty Shell NO
Dimensions
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 59.0μin 1.50μm
Compliance
RoHS Status ROHS3 Compliant
