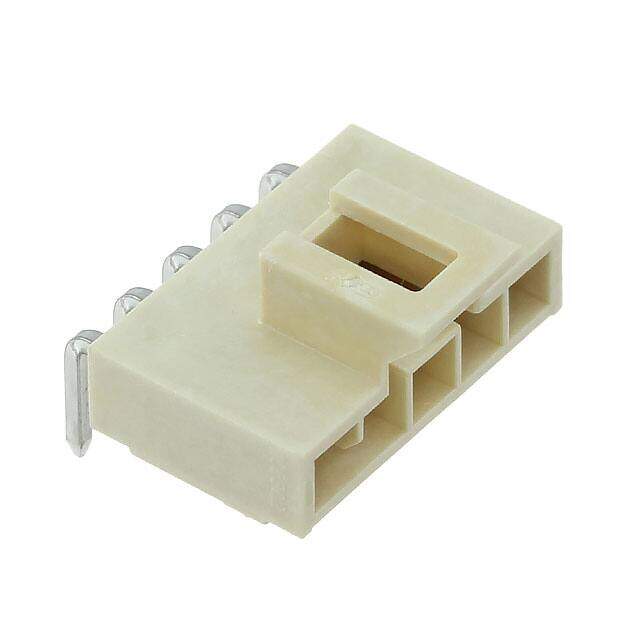

1053132105 image
Favorite
1053132105 image
Favorite

1053132105

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER R/A 5POS 2.5MM
PDF
/
Buying Options
Total Price: USD $1.54
Unit Price: USD $1.54
≥1 USD $1.54
≥10 USD $1.31032
≥100 USD $1.08247
≥500 USD $0.854577
≥1000 USD $0.757724
≥3000 USD $0.740634
Inventory: 1159
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Contact Finish Thickness - Post 59.0μin 1.50μm
Contact Finish Thickness - Mating 59.0μin 1.50μm

Technical

Shrouding Shrouded - 4 Wall
Contact Length - Post 0.126 3.20mm
Insulation Color Natural
Pitch - Mating 0.098 2.50mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.149 3.78mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Latch Holder
Voltage - Rated 250V
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
Number of Positions 5
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide
Series Nano-Fit 105313
Published 2016
Packaging Tray
Operating Temperature -40°C~105°C

Physical

Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Brass

Supply Chain

Factory Lead Time 12 Weeks
