1053132103
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

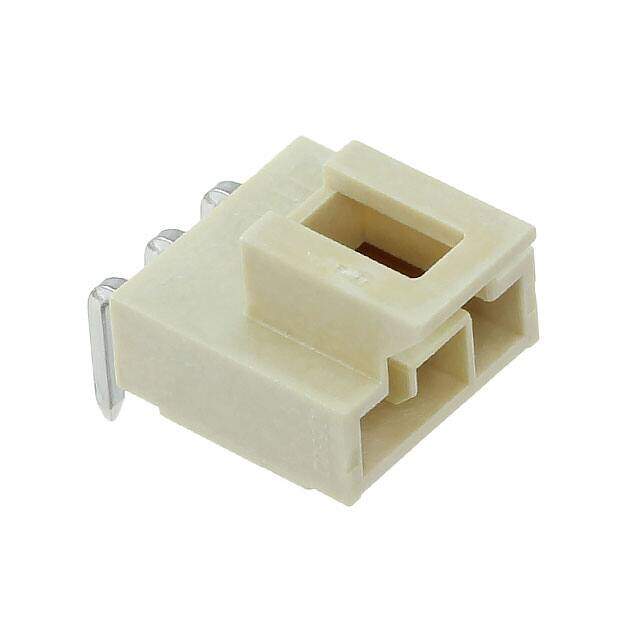

CONN HEADER R/A 3POS 2.5MM
PDF
/
Buying Options
Total Price: USD $1.14
Unit Price: USD $1.144
≥1 USD $1.144
≥10 USD $0.94864
≥100 USD $0.790838
≥500 USD $0.632685
≥1000 USD $0.553599
≥3000 USD $0.525914
Inventory: 3534
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Published 2016
Series Nano-Fit 105313
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 3
Applications Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
Number of Rows 1
Voltage - Rated 250V
Fastening Type Latch Holder
Contact Finish - Mating Tin
Contact Type Male Pin
Insulation Height 0.149 3.78mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.098 2.50mm
Insulation Color Natural
Contact Length - Post 0.126 3.20mm
Shrouding Shrouded - 4 Wall
Dimensions
Contact Finish Thickness - Mating 59.0μin 1.50μm
Contact Finish Thickness - Post 59.0μin 1.50μm
Compliance
RoHS Status ROHS3 Compliant
