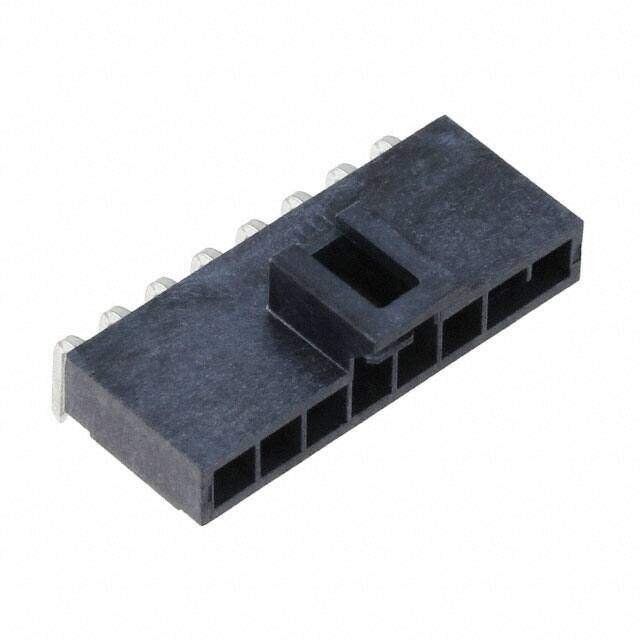

1053131108
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 8POS 2.5MM
PDF
/
Buying Options
Total Price: USD $1.06
Unit Price: USD $1.0648
≥1 USD $1.0648
≥10 USD $0.90904
≥100 USD $0.751142
≥500 USD $0.696036
Inventory: 5180
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness - Post 59.0μin 1.50μm
Contact Finish Thickness - Mating 59.0μin 1.50μm
Technical
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.126 3.20mm
Insulation Color Black
Pitch - Mating 0.098 2.50mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.149 3.78mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Latch Holder
Voltage - Rated 250V
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
Number of Positions 8
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide
Series Nano-Fit 105313
Published 2016
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Brass
Supply Chain
Factory Lead Time 9 Weeks
