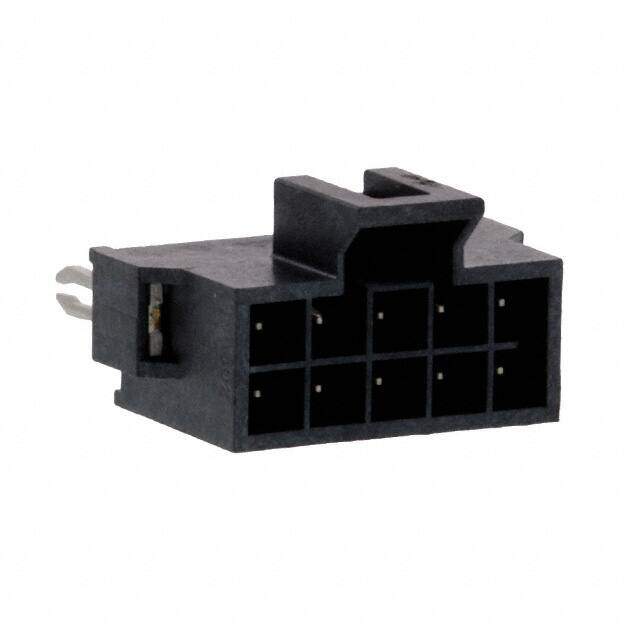

1053121110
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 10POS 2.5MM
PDF
/
Buying Options
Total Price: USD $2
Unit Price: USD $1.99792
≥1 USD $1.99792
≥10 USD $1.884827
≥100 USD $1.778142
≥500 USD $1.677495
≥1000 USD $1.582534
Inventory: 914
Minimum: 1
-
+
Technical Details
Dimensions
Stack Height (Mating) 21.30mm
Contact Finish Thickness - Post 59.0μin 1.50μm
Contact Finish Thickness - Mating 59.0μin 1.50μm
Technical
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.126 3.20mm
Row Spacing - Mating 0.098 (2.50mm)
Insulation Color Black
Pitch - Mating 0.098 2.50mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.356 9.05mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Latch Holder
HTS Code 8536.69.40.30
Voltage - Rated 250V
Number of Rows 2
Applications Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
Number of Positions 10
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock
Series Nano-Fit 105312
Published 2016
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 9 Weeks
