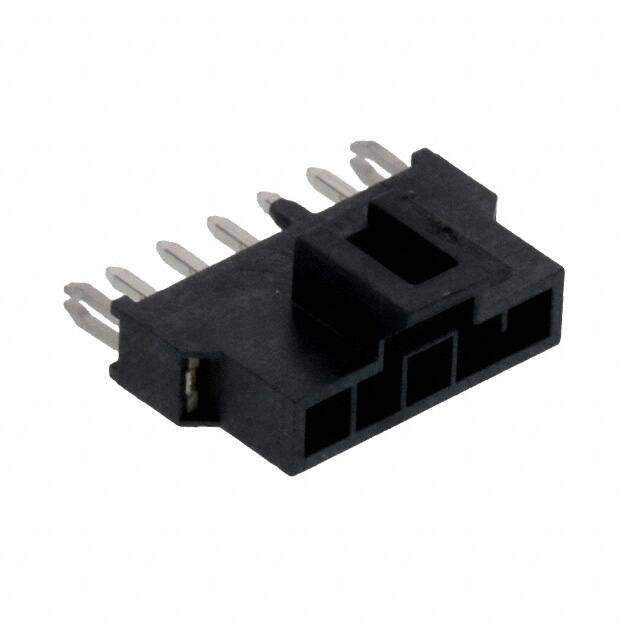

1053111105 image
Favorite
1053111105 image
Favorite

1053111105

Molex
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER VERT 5POS 2.5MM
PDF
/
Buying Options
Total Price: USD $1.52
Unit Price: USD $1.5224
≥1 USD $1.5224
≥10 USD $1.29888
≥100 USD $1.072826
≥500 USD $0.846982
≥1000 USD $0.750992
≥3000 USD $0.734052
Inventory: 610
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Contact Material Brass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)

Technical

Operating Temperature -40°C~105°C
Packaging Tray
Published 2016
Series Nano-Fit 105311
Feature Board Guide, Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 5
Applications Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
Number of Rows 1
Voltage - Rated 250V
Fastening Type Latch Holder
Contact Finish - Mating Tin
Contact Type Male Pin
Insulation Height 0.356 9.05mm
Style Board to Cable/Wire
Number of Positions Loaded All
Reach Compliance Code compliant
Pitch - Mating 0.098 2.50mm
Insulation Color Black
Contact Length - Post 0.126 3.20mm
Shrouding Shrouded - 4 Wall

Dimensions

Contact Finish Thickness - Mating 59.0μin 1.50μm
Contact Finish Thickness - Post 59.0μin 1.50μm
Stack Height (Mating) 21.30mm
