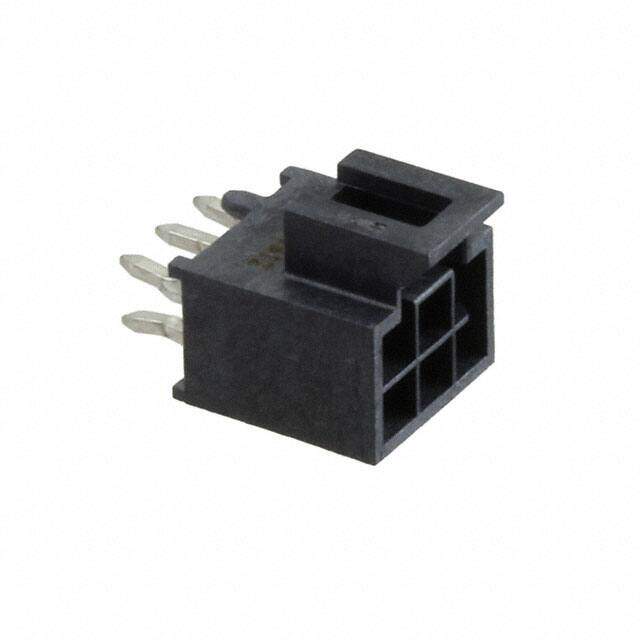

1053101206
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
NANOFIT HDR VT DLR KNK 6CKT 15AU
PDF
/
Buying Options
Total Price: USD $1.94
Unit Price: USD $1.9448
≥1 USD $1.9448
≥10 USD $1.65352
≥100 USD $1.366033
≥500 USD $1.078431
≥1000 USD $0.956199
Inventory: 1226
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Stack Height (Mating) 21.30mm
Contact Finish Thickness - Post 59.0μin 1.50μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Technical
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.126 3.20mm
Row Spacing - Mating 0.098 (2.50mm)
Insulation Color Black
Pitch - Mating 0.098 2.50mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.356 9.05mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Latch Holder
Voltage - Rated 250V
Gender Male
Number of Rows 2
Applications Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
Number of Positions 6
Connector Type Header
ECCN Code EAR99
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Board Guide
Series Nano-Fit 105310
Published 2016
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 17 Weeks
