1053091202
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

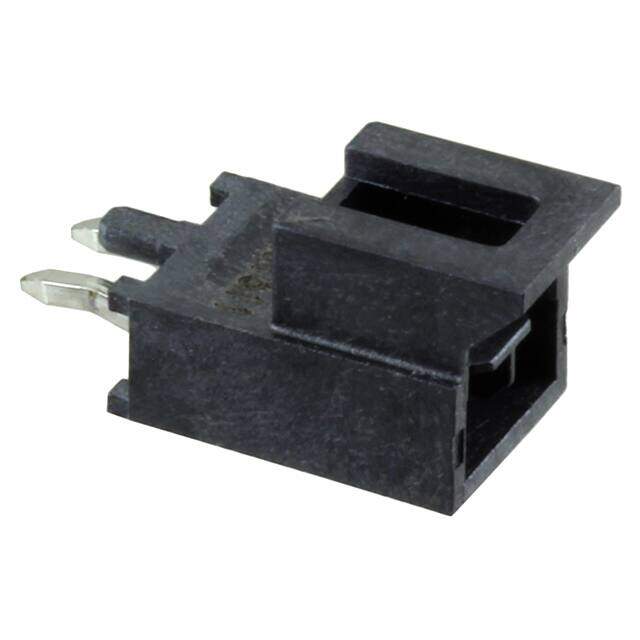

Nano-Fit Vertical Header Through Hole 2.50mm Single Row 2 Circuit Gold Plating
PDF
/
Buying Options
Total Price: USD $0.92
Unit Price: USD $0.924
≥1 USD $0.924
≥10 USD $0.76648
≥100 USD $0.639056
≥500 USD $0.511236
≥1000 USD $0.44733
≥3000 USD $0.42497
Inventory: 45948
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Stack Height (Mating) 21.30mm
Contact Finish Thickness - Post 59.0μin 1.50μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Technical
Empty Shell NO
UL Flammability Code 94V-0
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.126 3.20mm
Insulation Color Black
Pitch - Mating 0.098 2.50mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.356 9.05mm
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Latch Holder
HTS Code 8536.69.40.30
Additional Feature NANO-FIT, POLARIZED, SHROUDED
Voltage - Rated 250V
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
Number of Positions 2
Connector Type Header
ECCN Code EAR99
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Board Guide
JESD-609 Code e3
Series Nano-Fit 105309
Published 2016
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 12 Weeks
