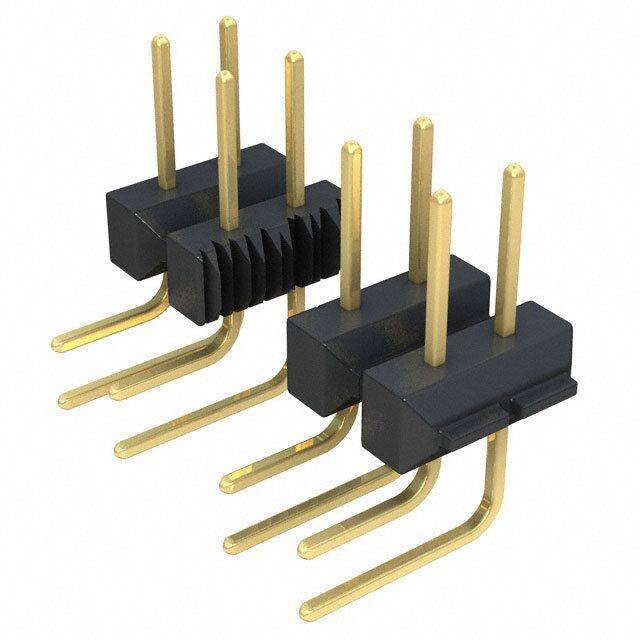

10-89-4682
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings Obsolete
PDF
/
Inventory: 5685
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Plating Thickness 15μin
Width 2.29mm
Length 86.11mm
Technical
Contact Pattern RECTANGULAR
Max Voltage Rating (DC) 250.25kV
Dielectric Withstanding Voltage 600VAC V
Max Voltage Rating (AC) 250V
Body/Shell Style RECEPTACLE
Insulation Resistance 1000000000Ohm
Contact Style SQ PIN-SKT
Rated Current (Signal) 3A
UL Flammability Code 94V-0
Contact Gender Male
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 6.096mm
Number Of PCB Rows 2
Row Spacing - Mating 2.54 mm
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Current Rating 3A
Reach Compliance Code unknown
Depth 5.59mm
Orientation Right Angle
Total Number of Contacts 68
Pitch 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.40
Additional Feature C-GRID, HIGH PROFILE
Voltage - Rated 250V
Number of Rows 2
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 68
Connector Type Male Pin
ECCN Code EAR99
Termination Solder
JESD-609 Code e3
Published 2008
Physical
Housing Material Polyester
Mount Through Hole
Contact Plating Gold
Contact Material Bronze
