10-89-4286
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

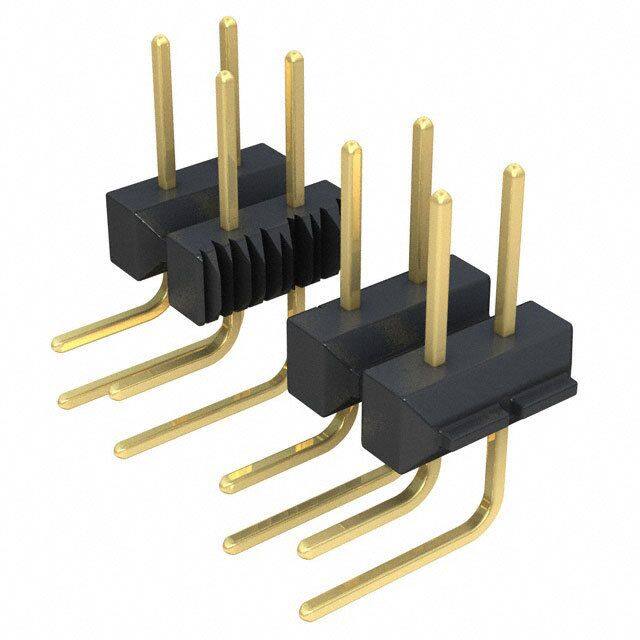

C-GRID HIGH PROFILE Male Pin Rectangular Connector
PDF
/
Inventory: 4240
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mounting Type BOARD
Material Brass, Polyester
Housing Material Polyester
Technical
Published 2013
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Termination Solder
ECCN Code EAR99
Connector Type BOARD CONNECTOR
Number of Positions 28
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Number of Rows 2
Gender Male
Additional Feature C-GRID, HIGH PROFILE
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.54mm
Total Number of Contacts 28
Orientation Right Angle
Depth 13.54mm
Reach Compliance Code unknown
Current Rating 3A
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Housing Color Black
Rated Current (Signal) 3A
Contact Style SQ PIN-SKT
Insulation Resistance 1000000000Ohm
Body/Shell Style RECEPTACLE
Max Voltage Rating (AC) 250V
Dielectric Withstanding Voltage 600VAC V
Contact Pattern RECTANGULAR
Mating Contact Row Spacing 0.1 inch
Dimensions
Length 35.31mm
Plating Thickness 30μin
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
