10-89-4186
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

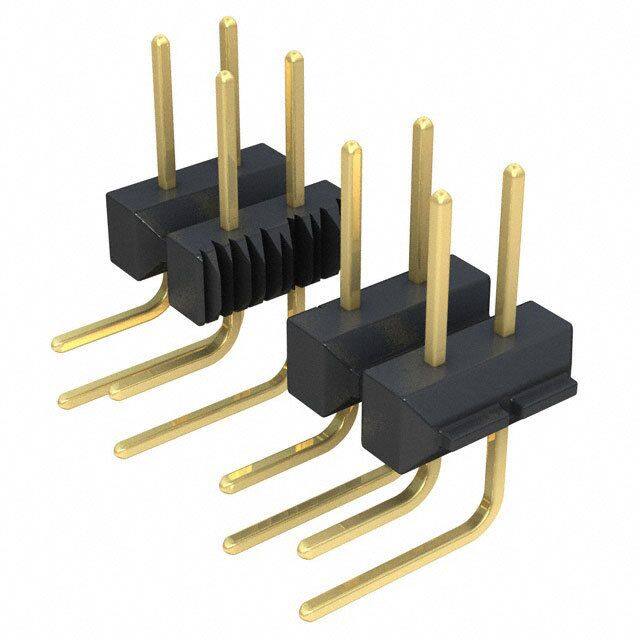

Headers & Wire Housings CGrid R/A Bkwy HPro Hdr 30 SAu 18Ckt
PDF
/
Inventory: 9537
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Through Hole
Material Brass
Housing Material Plastic
Technical
Published 2013
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Termination Solder
ECCN Code EAR99
Connector Type Male Pin
Number of Positions 18
Color Black
Number of Rows 2
Gender Male
Voltage - Rated 250V
Additional Feature C-GRID, HIGH PROFILE
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.54mm
Total Number of Contacts 18
Orientation Right Angle
Reach Compliance Code unknown
Current Rating 3A
Number of Conductors ONE
Reference Standard UL, CSA
Glow Wire Compliant Non-compliant
Contact Pattern RECTANGULAR
Dielectric Withstanding Voltage 600VAC V
ELV Compliant
Body/Shell Style RECEPTACLE
Insulation Resistance 1000000000Ohm
Contact Style SQ PIN-SKT
Rated Current (Signal) 3A
UL Flammability Code 94V-0
Operating Temperature (Min) -40°C
Mating Information MULTIPLE MATING PARTS AVAILABLE
Operating Temperature (Max) 105°C
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 6.096mm
Number Of PCB Rows 2
Row Spacing - Mating 2.54 mm
Reliability COMMERCIAL
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
Plating Thickness 30μin
Width 2.29mm
Length 22.6mm
Height 5.59mm
Alternative Model
