10-89-4166
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

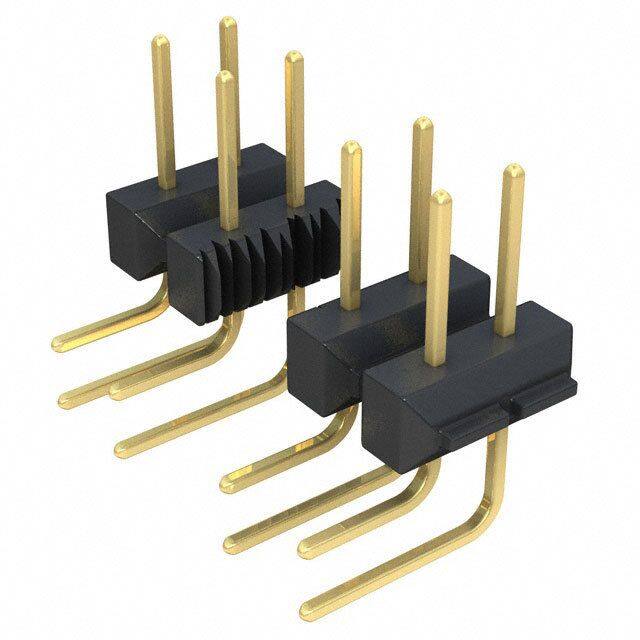

Headers & Wire Housings CGrid R/A Bkwy HPro Hdr 30 SAu 16Ckt
PDF
/
Inventory: 1940
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
Plating Thickness 30μin
Width 2.29mm
Length 20.1mm
Height 5.59mm
Technical
Glow Wire Compliant Non-compliant
Contact Pattern RECTANGULAR
Dielectric Withstanding Voltage 600VAC V
ELV Compliant
Body/Shell Style RECEPTACLE
Insulation Resistance 1000000000Ohm
Contact Style SQ PIN-SKT
Rated Current (Signal) 3A
UL Flammability Code 94V-0
Operating Temperature (Min) -40°C
Mating Information MULTIPLE MATING PARTS AVAILABLE
Operating Temperature (Max) 105°C
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 6.096mm
Number Of PCB Rows 2
Row Spacing - Mating 2.54 mm
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Current Rating 3A
Orientation Right Angle
Total Number of Contacts 16
Pitch 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.40
Additional Feature C-GRID, HIGH PROFILE
Voltage - Rated 250V
Gender Male
Number of Rows 2
Color Black
Number of Positions 16
Connector Type Male Pin
ECCN Code EAR99
Termination Solder
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2013
