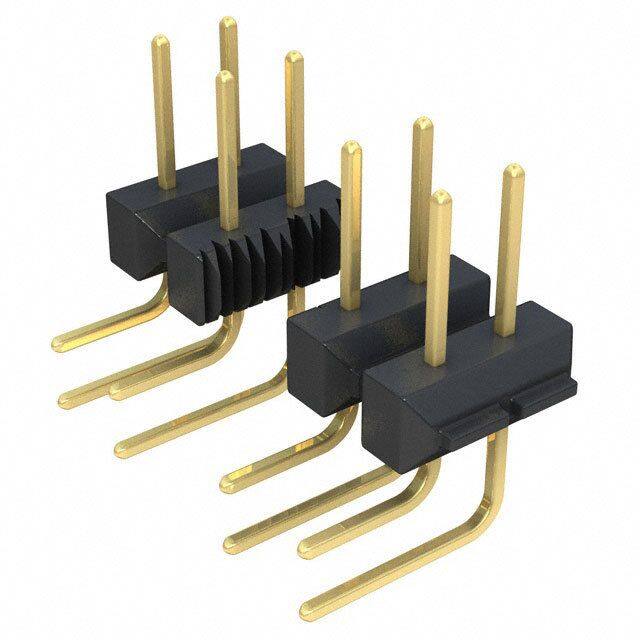

10-89-4102
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 2x5 HI-PRO R/A HDR
PDF
/
Inventory: 6334
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze
Contact Plating Gold, Tin
Mount Through Hole
Material Brass
Housing Material Polyester
Technical
Published 2013
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Termination Solder
ECCN Code EAR99
Connector Type Male Pin
Number of Positions 10
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Black
Number of Rows 2
Gender Male
Additional Feature C-GRID, HIGH PROFILE
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
Voltage - Rated DC 250V
Contact Finish - Mating GOLD (15) OVER NICKEL
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.54mm
Total Number of Contacts 10
Orientation Right Angle
Current Rating 3A
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Body Length or Diameter 0.49 inch
Row Spacing - Mating 2.54 mm
Number Of PCB Rows 2
Lead Pitch 2.54mm
Contact Length - Mating 6.096mm
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Rated Current (Signal) 3A
Contact Style SQ PIN-SKT
Body/Shell Style RECEPTACLE
ELV Compliant
Dielectric Withstanding Voltage 600VAC V
Max Voltage Rating (DC) 250.25kV
Contact Pattern RECTANGULAR
Glow Wire Compliant Non-compliant
Dimensions
Plating Thickness 15μin
Length - Termination 0.11 inch
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
