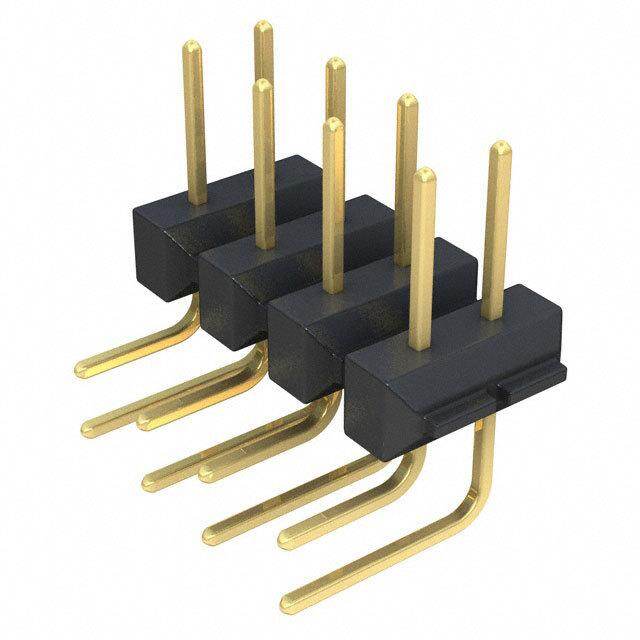

10-89-4086
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings CGrid R/A Bkwy HPro Hdr 30 SAu 8Ckt
PDF
/
Inventory: 1902
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Through Hole
Material Brass
Housing Material Plastic
Technical
Published 2013
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Termination Solder
ECCN Code EAR99
Connector Type Male Pin
Number of Positions 8
Color Black
Number of Rows 2
Gender Male
Voltage - Rated 250V
Additional Feature C-GRID, HIGH PROFILE
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.54mm
Total Number of Contacts 8
Orientation Right Angle
Current Rating 3A
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Row Spacing - Mating 2.54 mm
Number Of PCB Rows 2
Contact Length - Mating 6.096mm
PCB Contact Pattern RECTANGULAR
Operating Temperature (Max) 105°C
Mating Information MULTIPLE MATING PARTS AVAILABLE
Operating Temperature (Min) -40°C
UL Flammability Code 94V-0
Rated Current (Signal) 3A
Contact Style SQ PIN-SKT
Insulation Resistance 1000000000Ohm
Body/Shell Style RECEPTACLE
ELV Compliant
Dielectric Withstanding Voltage 600VAC V
Contact Pattern RECTANGULAR
Glow Wire Compliant Non-compliant
Dimensions
Height 5.59mm
Length 9.91mm
Width 2.29mm
Plating Thickness 30μin
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
