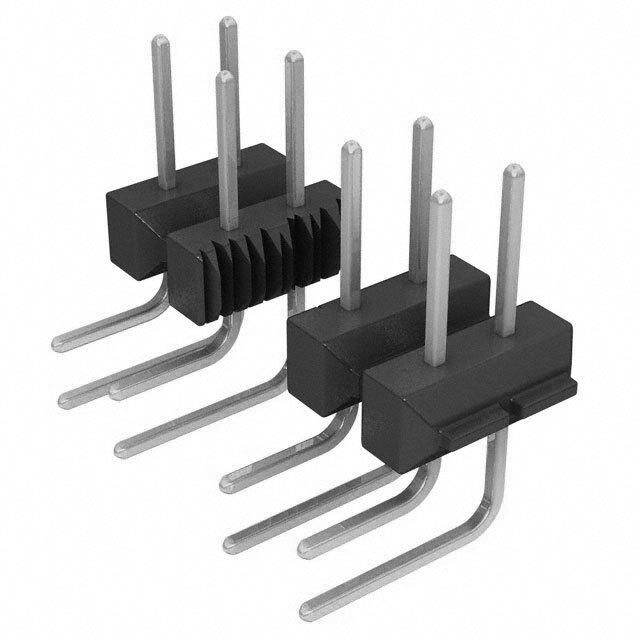

10-88-3161
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings HDR RA 2X08P .1 240/110 SN
PDF
/
Inventory: 6094
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material PHOSPHOR BRONZE
Mounting Type BOARD
Insulation Material GLASS FILLED POLYESTER
Mounting Option 1 LOCKING
Mounting Style RIGHT ANGLE
Technical
Published 2013
JESD-609 Code e3
Pbfree Code icon-pbfree yes
Part Status Active
ECCN Code EAR99
Connector Type BOARD CONNECTOR
Number of Rows 2
Additional Feature C-GRID, HIGH PROFILE
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating TIN (150) OVER NICKEL
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 16
Terminal Pitch 2.54mm
Reach Compliance Code compliant
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.79 inch
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Operating Temperature (Max) 120°C
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.22 inch
Contact Gender MALE
Operating Temperature (Min) -40°C
UL Flammability Code 94V-0
Rated Current (Signal) 2.5A
Contact Style SQ PIN-SKT
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.1 inch
Body/Shell Style RECEPTACLE
Termination Type SOLDER
Dielectric Withstanding Voltage 600VAC V
PCB Contact Row Spacing 2.54 mm
Contact Finish Termination Tin (Sn) - with Nickel (Ni) barrier
Contact Pattern RECTANGULAR
Mating Contact Row Spacing 0.1 inch
Insulator Color BLACK
Dimensions
Plating Thickness 150u inch
Length - Termination 0.11 inch
Compliance
RoHS Status RoHS Compliant
